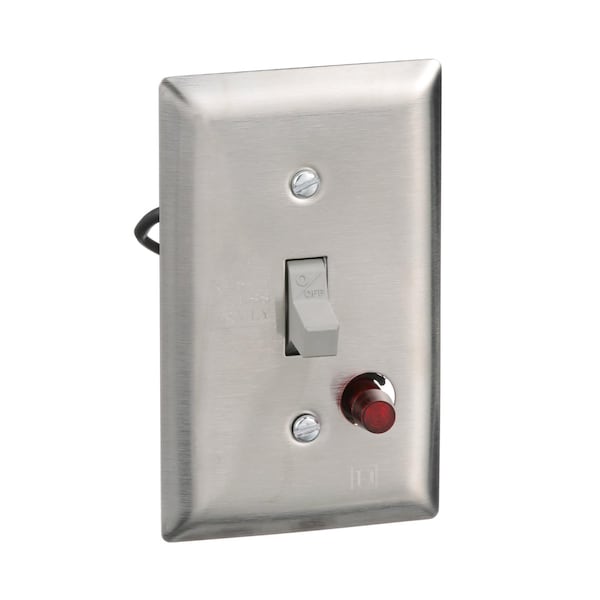

Arrancador manual, de caballos de fuerza fraccionarios, 16A, 1 polo, 1HP a 277 VCA, operado por interruptor de palanca, indicador rojo, empotrado en acero inoxidable.
| Depth | 2.19 in |
|---|---|
| Height | 4-1/2 in |
| Item | Manual Starter 277Vac |
| Width | 2-3/4 in |
| Awg Gauge | AWG 14 to AWG 12 copper |
| Reset | Manual |
| Product Or Component Type | Single Unit Manual Starter |
| Electrical Connection | Screw Clamp Terminals |
| Nema Degree Of Protection | not rated (flush plate) Stainless Steel standard size |
| Phase | 1 phase |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05 |
| Maximum Horse Power Rating | 1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC |
| [Ue] Rated Operational Voltage | 277 V AC |
| Thermal Overload Type | melting alloy |
| Poles Description | 1P |
| Motor Starter Type | non reversing |
| Line Rated Current | 16 A |
| Control Type | toggle switch |
| Local Signalling | red indicator |
| Range of Product | F |
| Cable Entry | without |
| Pvc Free | Yes |
| Package Quantity | 1 |
