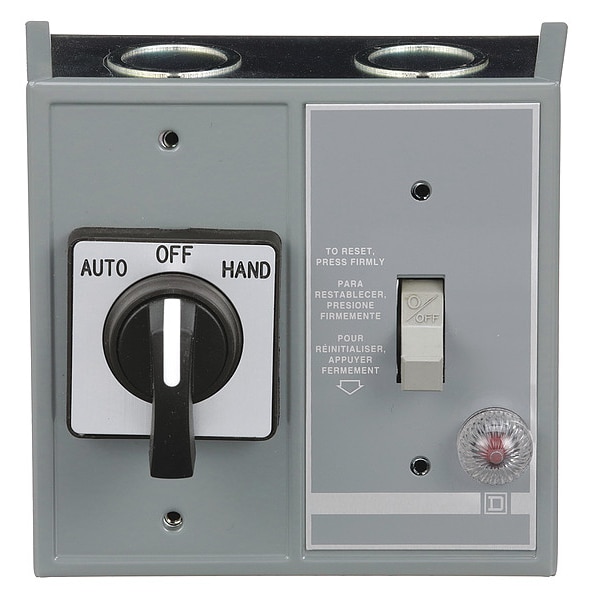

Arrancador manual, fracción de caballo de fuerza, duplex, 16A, 1 polo, 1 HP a 277 VAC, palanca y selector, indicador rojo, NEMA 1.
| Type | F |
|---|---|
| Depth | 2.88 in |
| Height | 4-1/4 in |
| Item | Manual Starter 277Vac |
| Width | 2.44 in |
| Awg Gauge | AWG 14 to AWG 12 copper |
| Nema Degree Of Protection | NEMA 1 Plastic standard size |
| Maximum Horse Power Rating | 1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC |
| Electrical Connection | Screw Clamp Terminals |
| Control Type | toggle switch |
| Local Signalling | red indicator |
| Motor Starter Type | non reversing |
| Thermal Overload Type | melting alloy |
| Line Rated Current | 16 A |
| Reset | Manual |
| Product Certifications | UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05 |
| Product Or Component Type | Duplex Unit Manual Starter |
| [Ue] Rated Operational Voltage | 277 V AC |
| Poles Description | 1P |
| Phase | 1 phase |
| Cable Entry | 0.5" and 0.75" knock-outs (top and bottom) |
| Horsepower Rating | 1 hp 115 V AC; 1 hp 230 V AC; 1 hp 277 V AC |
| Pvc Free | Yes |
| Package Quantity | 1 |
