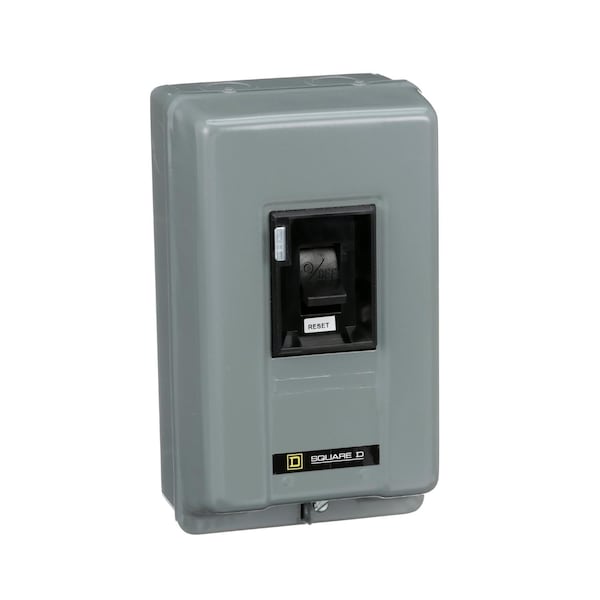

Arrancador manual, caballos de fuerza integrales, NEMA M1, 600 VCA, 3 polos, 10 HP a 380/575 VCA, trifásico, sin indicador, NEMA 1.
| Type | T |
|---|---|
| Depth | 4.13 in |
| Height | 8.63 in |
| Item | Manual Starter 600Vac |
| Width | 5 in |
| Poles Description | 3P |
| Motor Starter Type | non reversing |
| Nema Size | M-1 |
| Nema Degree Of Protection | NEMA 1 painted sheet steel |
| Auxiliary Contact Composition | without |
| Local Signalling | no indicator |
| Product Certifications | CSA LR60905 class 3211 05 || UL listed file E42243 CCN NLRV |
| Awg Gauge | AWG 14 to AWG 8 copper |
| Product Or Component Type | Manual Starter |
| [Ue] Rated Operational Voltage | 600 V AC |
| Electrical Connection | pressure wire clamp |
| Number Of Thermal Units Required | 3 |
| Control Type | toggle switch |
| Maximum Horse Power Rating | 7.5-7.5 hp 200 to 230 V AC, 3 phase || 10-10 hp 380 to 575 V AC, 3 phase |
| Thermal Overload Type | melting alloy |
| Certifications | CSA LR60905 class 3211 05; UL listed file E42243 CCN NLRV |
| Horsepower Rating | 7.5 hp 200 to 230 V AC, 3 phase; 10 hp 380 to 575 V AC, 3 phase |
| Pvc Free | Yes |
| Package Quantity | 1 |
