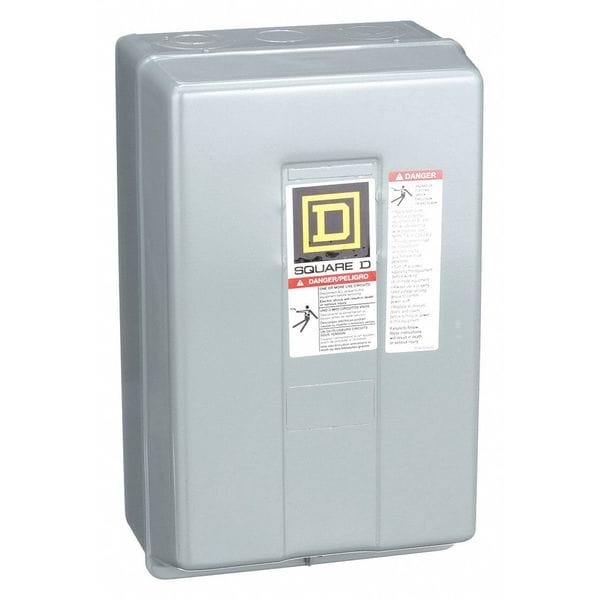

Control de iluminación mecánico de 30 amperios y 6 polos en un gabinete NEMA1.
| Item | Mech Held Ltg Contr 30A 6Pole Nema1 Encl |
|---|---|
| Depth | 153 mm |
| Height | 322 mm |
| Width | 198 mm |
| Electrical Connection | Screw-Clamp Terminals |
| Hold-In Power Consumption In Va | 30-30 VA |
| Product Certifications | UL Listed || CSA |
| Nema Degree Of Protection | NEMA 1 painted sheet steel surface |
| Line Rated Current | 20-20 A tungsten || 30-30 A fluorescent |
| Product Or Component Type | Mechanically Held Lighting Contactor |
| Inrush Power In Va | 150-150 VA 60 Hz || 140-140 VA 50 Hz || 25-25 VA 50/60 Hz |
| Control Type | No control units |
| Poles Description | 6P 6 NO |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Local Signalling | no indicator |
| Control Circuit | Separate control circuit |
| Package Quantity | 1 |
