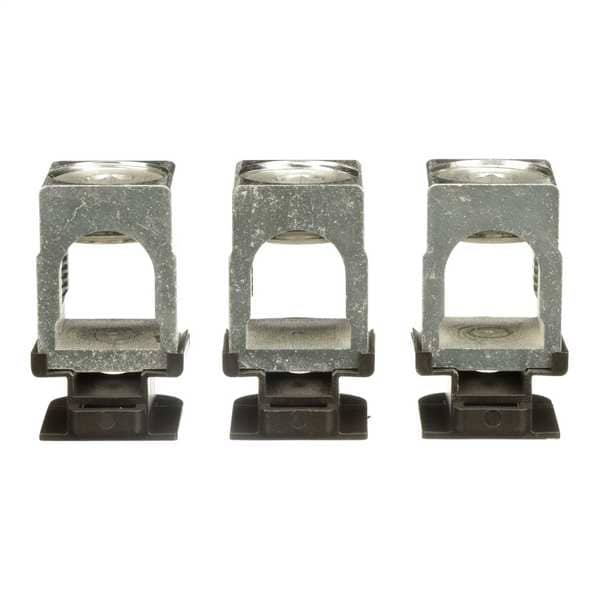

Mechanical Lug, Powerpact(R) J Frame Circuit Breakers, 600V AC, 250A
| Item | Mechanical Lug |
|---|---|
| For Use With | Powerpact(R) J Frame Circuit Breakers |
| Voltage | 600V AC |
| Amps | 250A |
| Max. Wire Size | 300 kcmil copper |
| Min. Wire Size | 1/0 AWG |
| Includes | (3) Mechanical Lug |
| Series | JD/JG/JJ/JL |
| Material | Copper |
| Number of Lugs Included | 3 |
| Product Or Component Type | mechanical lug |
| Location Of Connection | downstream || upstream |
| Awg Gauge | AWG 1/0...300 kcmil copper |
| Product Certifications | CSA || UL |
| Tightening Torque | 28-28 N.m 50-150 mm2² (AWG 1/0...300 kcmil) |
| Line Rated Current | 250-250 A |
| Product Compatibility | PowerPact J PowerPact J-Frame |
| Package Quantity | 3 |
