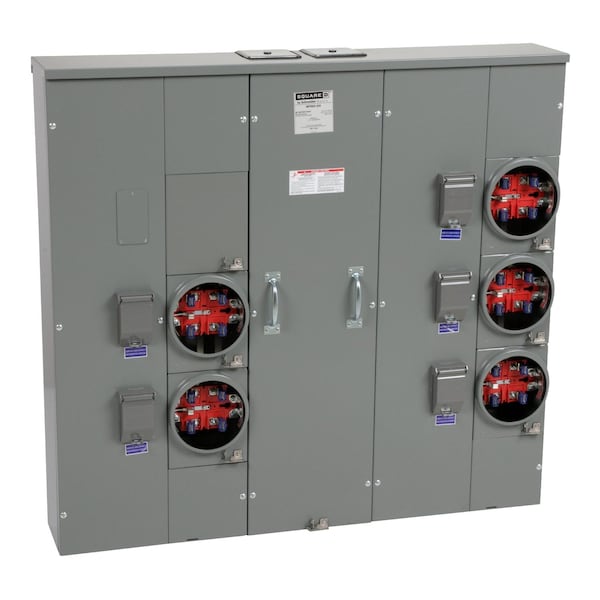

Meter Main, MPR, 120/240V AC, Main Lug, 1 Phase
| Item | Meter Main |
|---|---|
| Main Circuit Breaker or Main Lug | Main Lug |
| Voltage | 120/240V AC |
| Phase | 1 |
| Height | 43.41 in |
| Width | 46.68 in |
| Depth | 8.28 in |
| Series | MPR |
| Enclosure Material | Steel |
| Enclosure NEMA Rating | NEMA 3R |
| Bus Material | Aluminum |
| Mounting Style | Surface |
| Standards | UL Listed |
| Circuit Breaker Type | Meter-Pak |
| Wire Size | AWG 3/0...500 kcmil 2 aluminium || AWG 3/0...500 kcmil 2 copper |
| Meter Socket Type | ringless |
| Main Rated Current | 750 A || 600 A |
| Number Of Meter Sockets | 5 |
| Meter Socket Rated Current | 200 A |
| Bypass Type | no bypass |
| Wiring Configuration | 3-wire |
| Bus Rated Current | 800 A |
| Number of jaws | 5 |
| Package Quantity | 1 |
