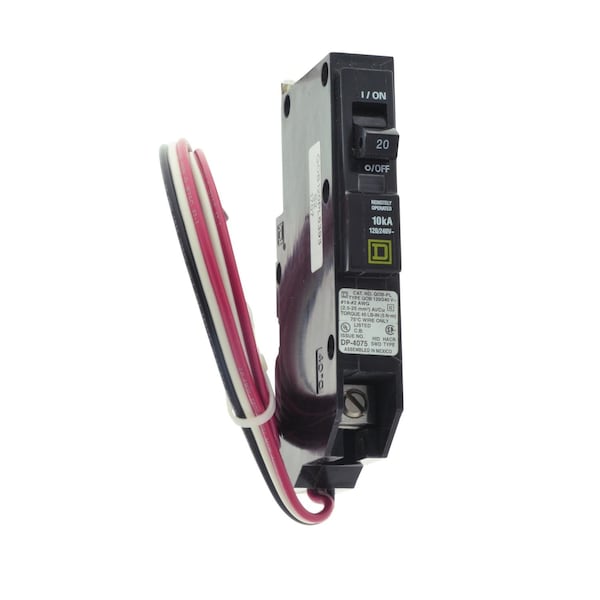

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on, Powerlink, 60in leads
| Item | Mini CB,QO,20 A,1P,120/240 V,10 kA, |
|---|---|
| Voltage | 120/240V AC |
| Max. Amps | 20 |
| Circuit Breaker Type | standard |
| Width | 19 mm |
| Depth | 74 mm |
| Height | 116 mm |
| Description/Special Features | Mercury Free |
| Standards | UL Listed; CSA |
| Awg Gauge | AWG 12...AWG 2 aluminium, AWG 14...AWG 2 copper |
| Ambient Air Temperature For Operation | 40°C |
| Mounting Mode | bolt-on |
| Number of Spaces Required | 1 |
| [Ue] Rated Operational Voltage | 120/240 V AC, 240 V AC, 120 V AC |
| Range of Product | QO |
| Provided Equipment | 60 in lead |
| Electrical Connection | box lugs |
| Poles Description | 1P |
| Tightening Torque | 4-4 N.m |
| Breaking Capacity | 10 kA 120/240 V AC, 10 kA 240 V AC, 10 kA 120 V AC |
| Circuit Breaker Application | HACR rated |
| Product or Component Type | miniature circuit-breaker |
| Package Quantity | 1 |
