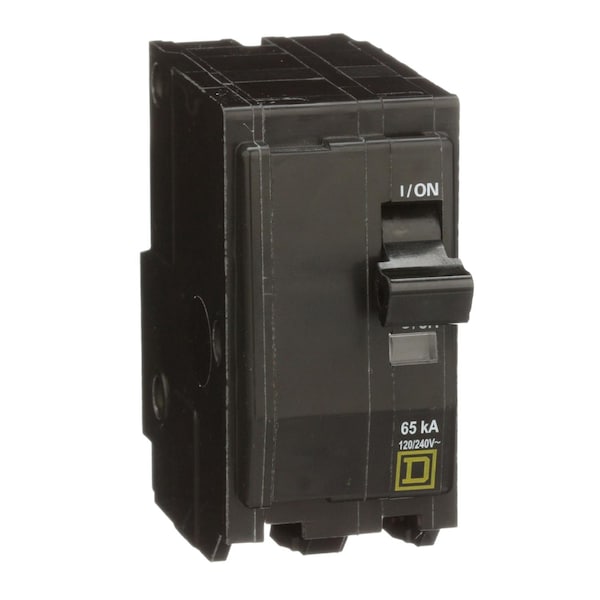

Mini circuit breaker, QO, 30A, 2 pole, 120/240VAC, 65kA, plug in
| Item | Mini CB,QO,30 A,2P,120/240 V,65 kA, |
|---|---|
| Voltage | 120/240V AC; 120V AC |
| Max. Amps | 30 |
| Circuit Breaker Type | standard |
| Width | 38 mm |
| Depth | 74 mm |
| Height | 76 mm |
| Standards | UL Listed; CSA |
| Description/Special Features | Mercury Free |
| Awg Gauge | AWG 14...AWG 8 copper or aluminium |
| Tightening Torque | 4.6-4.6 N.m |
| Product or Component Type | miniature circuit-breaker |
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Breaking Capacity | 65 kA 120/240 V AC, 65 kA 120 V AC |
| Number of Spaces Required | 2 |
| Ambient Air Temperature For Operation | 40°C |
| Poles Description | 2P |
| Mounting Mode | plug-in |
| Electrical Connection | pressure plate |
| Circuit Breaker Application | HACR rated |
| Range of Product | QO |
| Package Quantity | 1 |
