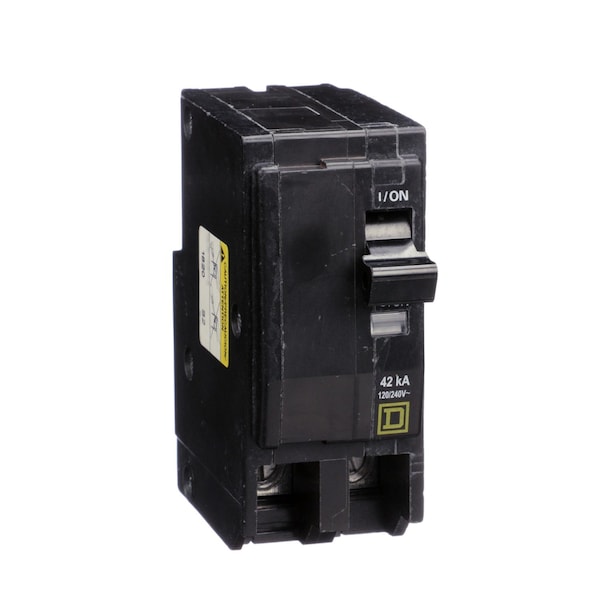

Mini circuit breaker, QO, 80A, 2 pole, 120/240VAC, 42kA, plug in
| Item | Mini CB,QO,80 A,2P,120/240 V,42 kA, |
|---|---|
| Voltage | 120/240V AC |
| Max. Amps | 80 |
| Circuit Breaker Type | standard |
| Width | 57 mm |
| Depth | 74 mm |
| Height | 89 mm |
| Description/Special Features | Mercury Free |
| Standards | UL Listed, CSA |
| Product or Component Type | miniature circuit-breaker |
| Poles Description | 2P |
| Breaking Capacity | 42 kA 120/240 V AC |
| Line Rated Current | 80 A |
| Number of Spaces Required | 2 |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | box lugs |
| Range of Product | QO |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Awg Gauge | AWG 4...AWG 2/0 copper or aluminium |
| Tightening Torque | 5.6-5.6 N.m |
| Ambient Air Temperature For Operation | 40°C |
| Mounting Mode | plug-in |
| Package Quantity | 1 |
