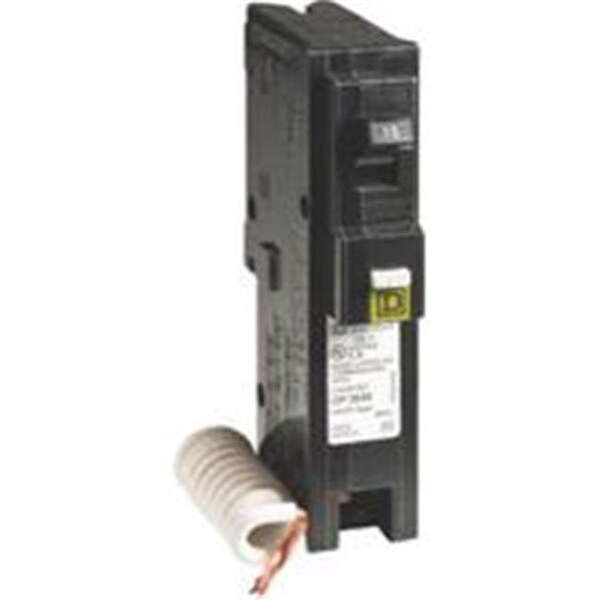

Miniature Circuit-Breaker, 1 Pole, 120V AC
| Item | Miniature Circuit-Breaker |
|---|---|
| Amps | 15 A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Combination ARC-Fault |
| Circuit Breaker Mounting Style | Plug-in |
| Terminal Connection | Screw Clamp |
| Width | 1 in |
| Depth | 2.98 in |
| Height | 3.13 in |
| Standards | UL Listed |
| Application | HACR |
| Max. Wire Size | 8 AWG (Aluminium/Copper ); 10 AWG (Copper ) |
| Min. Wire Size | 14 AWG |
| Package Quantity | 1 |
