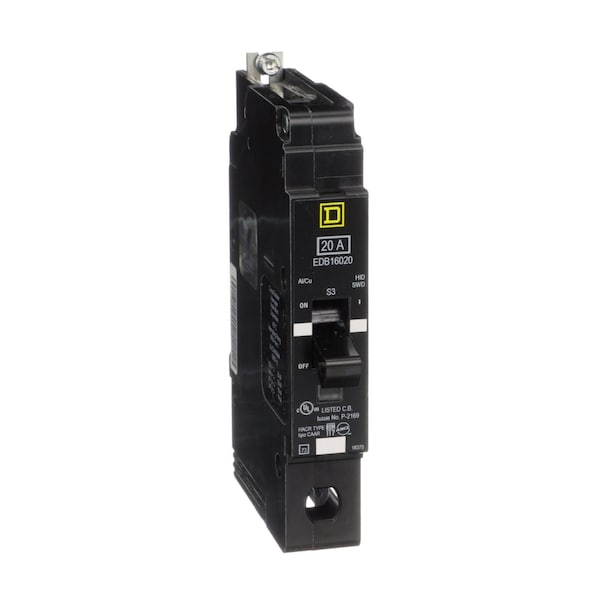

Miniature Circuit Breaker, EDB Series, 20A, 1 Pole, 347/600V AC, 25kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | EDB |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 347/600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 25kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, EDB |
| Width | 0.98 in |
| Depth | 4.05 in |
| Height | 5.66 in |
| DC Voltage Rating | Not Rated |
| For Use With | NF Panelboard |
| High Amp Trip Setting | 875 A |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Application | HACR rated Applications |
| Features | Mercury Free |
| Interrupt Rating | 14 kA at 600Y/347V AC |
| Max. Wire Size | 6 AWG (Cu/Al) |
| Standards | IEC, cULus |
| Product Type | Miniature Circuit Breaker 600V 20A |
| Package Quantity | 1 |
