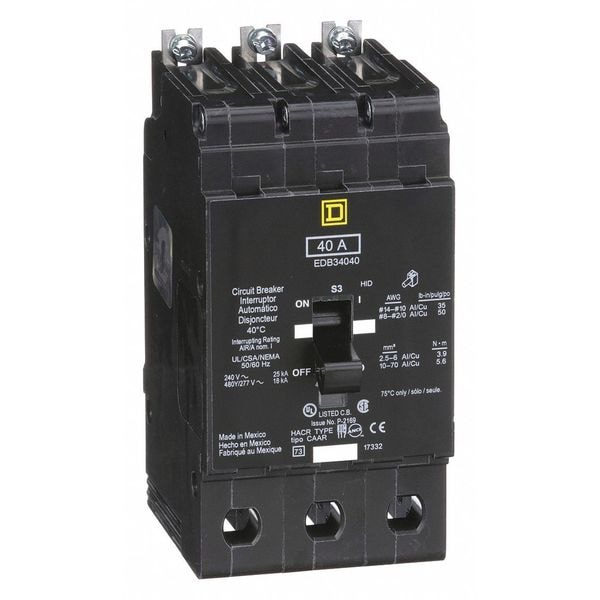

Miniature Circuit Breaker, EDB Series, 40A, 3 Pole, 277/480V AC, 25kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | EDB |
| Amps | 40A |
| Number of Poles | 3 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 25kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, EDB |
| Width | 2.94 in |
| Depth | 4.05 in |
| Height | 5.66 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 2 AWG |
| For Use With | Square D NF Panelboards |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Standards | cULus |
| High Amp Trip Setting | 1,800 A |
| Application | HACR rated Applications, HID rated Applications |
| Features | Mercury Free |
| Interrupt Rating | 18 kA at 277/480Y/277V AC, 25 kA at 120/240V AC |
| Max. Operating Temp. | 104 deg F |
| Compatible Panelboard/Load Center Series | NF |
| Length (Straight Wireway) | 5.66 in |
| Length | 5.66 in |
| Voltage | 480Y/277 VAC |
| Mounting | Bolt on |
| Package Quantity | 1 |
