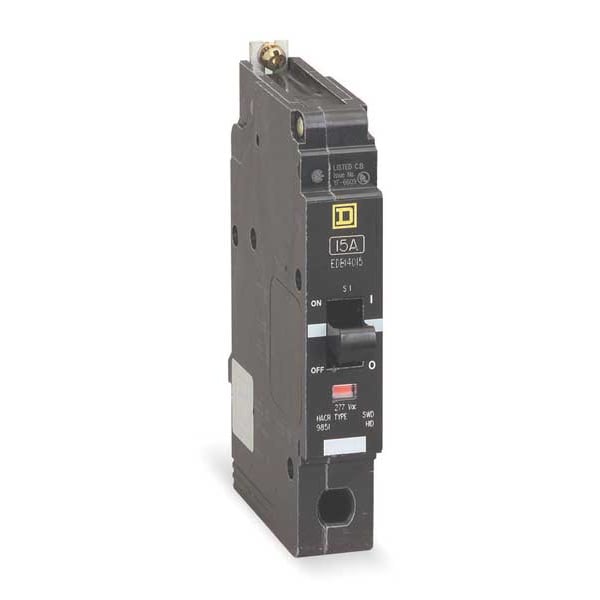

Miniature Circuit Breaker, EGB Series, 15A, 1 Pole, 277V AC, 65kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | EGB |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 65kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, EGB |
| Width | 0.98 in |
| Depth | 4.05 in |
| Height | 5.66 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 6 AWG |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Standards | cULus |
| For Use With | Square D NF Panelboards |
| Interrupt Rating | 35 kA at 120/240/277V AC, 65 kA at 120V AC |
| Features | Mercury Free |
| High Amp Trip Setting | 875 A |
| Application | HID rated Applications, Switching Duty rated Applications, HACR rated Applications |
| Compatible Panelboard/Load Center Series | NF |
| Min. Operating Temp. | 77 deg F |
| Max. Operating Temp. | 104 deg F |
| Length (Straight Wireway) | 5.66 in |
| Voltage | 277VAC |
| Mounting | Bolt on |
| Length | 5.66 in |
| Package Quantity | 1 |
