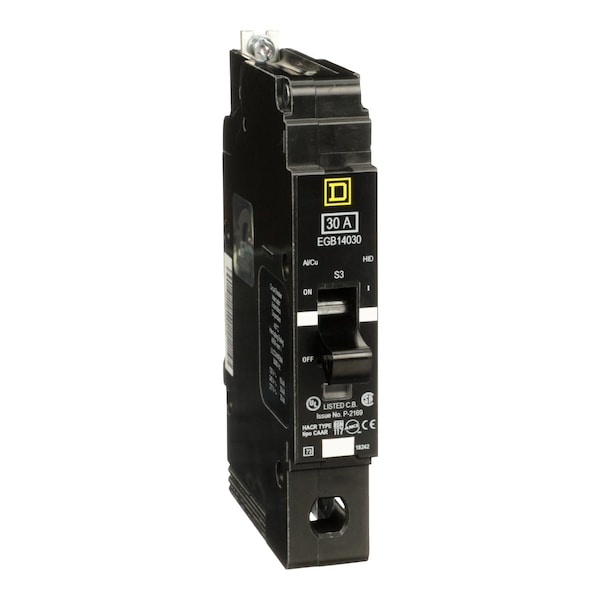

Miniature Circuit Breaker, EGB Series, 30A, 1 Pole, 277V AC, 65kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | EGB |
| Amps | 30A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 65kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, EGB |
| Width | 0.98 in |
| Depth | 4.05 in |
| Height | 5.66 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Max. Wire Size | 6 AWG (Cu/Al) |
| Features | Mercury Free |
| Standards | cULus |
| For Use With | NF Panelboard |
| Application | HID rated Applications, HACR rated Applications |
| Interrupt Rating | 35 kA at 120/240/277V AC, 65 kA at 120V AC |
| High Amp Trip Setting | 875 A |
| Product Type | Miniature Circuit Breaker 277V 30A |
| Holding Current | 270 A |
| Ambient Air Temperature For Operation | 104°F (40°C) |
| Local Signalling | Trip indicator |
| Breaking Capacity Code | G |
| Circuit Breaker Application | HID rated |
| AWG Gauge | AWG 12 to AWG 6 aluminium; AWG 14 to AWG 6 copper |
| Breaking Capacity | 35 kA 277 V AC; 35 kA 240 V AC; 65 kA 120 V AC; 35 kA 120/240 V AC |
| Protection Type | Short-circuit; Overload |
| Maximum Operating Voltage | 277 V AC |
| Tightening Torque | 30.09 lbf.in (3.4 N.m) 0.00 to 0.02 in² (2.5 to 16 mm²) (AWG 14 to AWG 6) |
| Module Type | E-Frame |
| Package Quantity | 1 |
