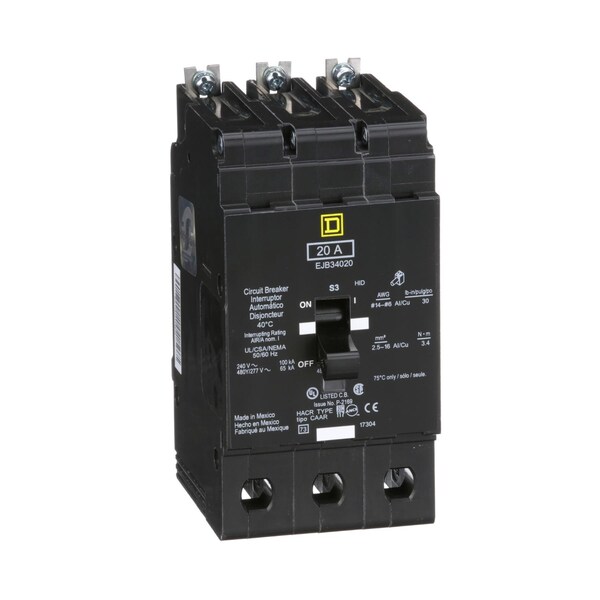

Miniature Circuit Breaker, EJB Series, 20A, 3 Pole, 277/480V AC, 100kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | EJB |
| Amps | 20A |
| Number of Poles | 3 |
| AC Voltage Rating | 277/480V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 100kA at 120V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Frame Size | 125A, EJB |
| Width | 2.94 in |
| Depth | 4.05 in |
| Height | 5.66 in |
| DC Voltage Rating | Not Rated |
| For Use With | NF Panelboard |
| Interrupt Rating | 65 kA at 480Y/277V AC, 100 kA at 120/240V AC |
| Features | Mercury Free |
| Standards | cULus |
| Application | HID rated Applications, HACR rated Applications |
| High Amp Trip Setting | 875 A |
| Max. Wire Size | 6 AWG (Cu/Al) |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Package Quantity | 1 |
