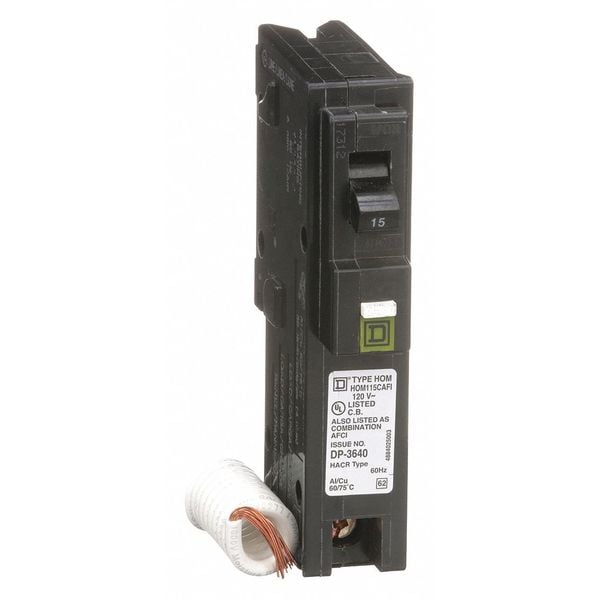

Miniature Circuit Breaker, HOM Series, 15A, 1 Pole, 120V AC, 10kA
| Item | Miniature Circuit Breaker |
|---|---|
| Series | HOM |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Terminal Connection | Busbar |
| Frame Size | 100A, HOM |
| Width | 4.09 in |
| Depth | 3.39 in |
| Height | 6.42 in |
| DC Voltage Rating | Not Rated |
| For Use With | Homeline Load Center |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| Standards | CSA Certified, HACR, UL Listed |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Max. Operating Temp. | 104 deg F |
| Compatible Panelboard/Load Center Series | HOM |
| Min. Operating Temp. | 77 deg F |
| Length (Straight Wireway) | 3.13 in |
| Length | 3.13 in |
| Voltage | 120VAC |
| Package Quantity | 1 |
