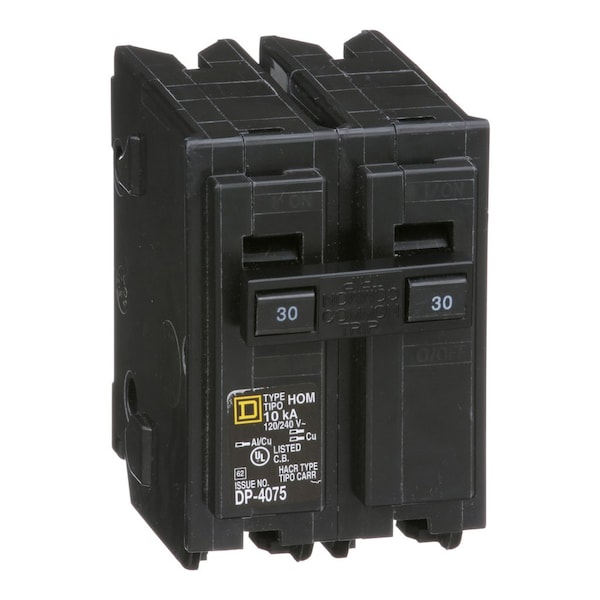

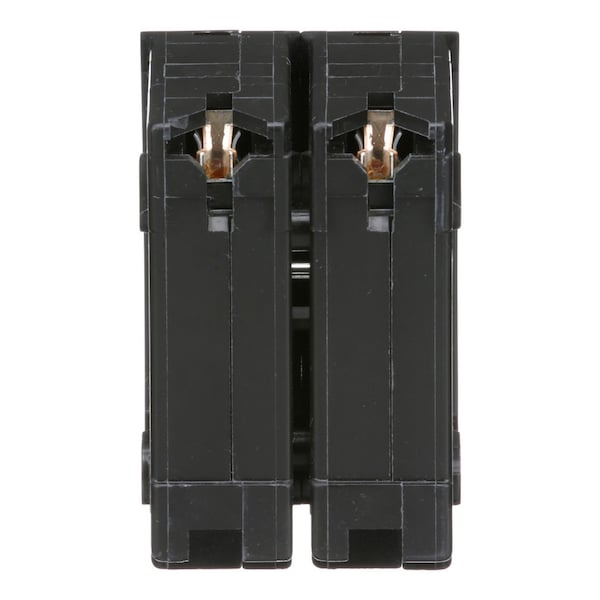

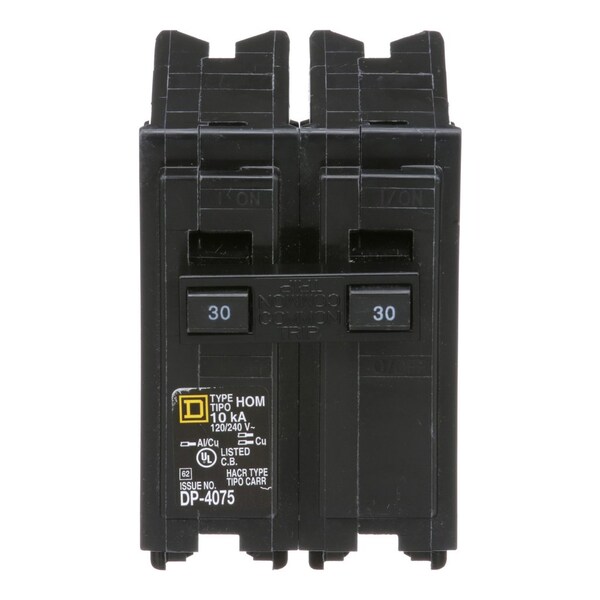

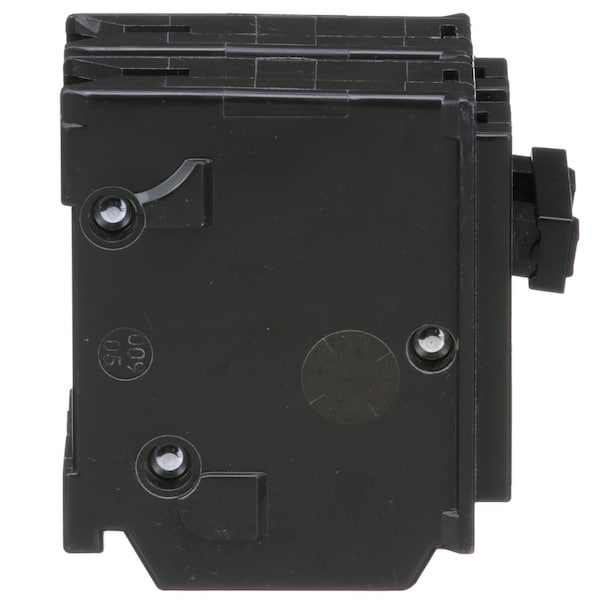

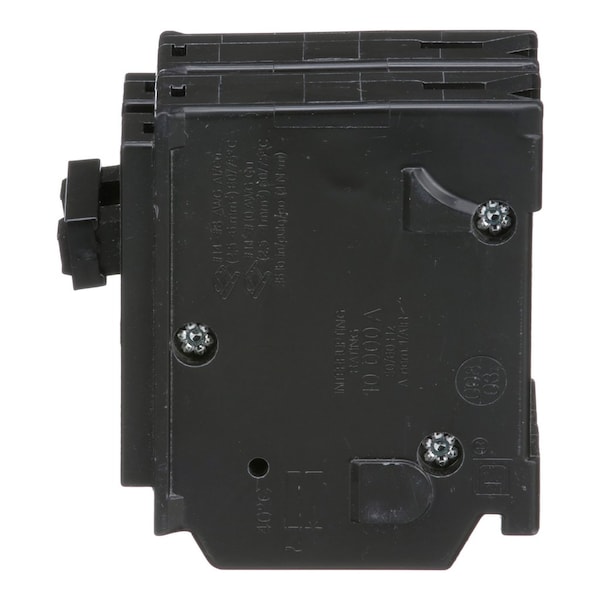

Miniature Circuit Breaker, HOM Series, 30A, 2 Pole, 120/240V AC, 10kA
| Item | Miniature Circuit Breaker |
|---|---|
| Series | HOM |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Terminal Connection | Lug |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 8 AWG (Cu/Al) |
| Max. Wire Size | 2 AWG (Cu/Al) |
| Standards | UL Listed |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Product Type | Miniature Circuit Breaker 120/240V 30A |
| Current Rating | 30 A |
| Ratings | HACR rated |
| Short Circuit Current Rating | 10 kA |
| Tightening Torque | 35.40 lbf.in (4.0 N.m) 0.00 to 0.02 in² (2.5 to 10 mm²) (AWG 16 to AWG 14); 35.40 lbf.in (4.0 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4) |
| Wire Size | 1 x AWG 8 to AWG 2 ( aluminium/copper ) |
| Ambient Air Temperature For Operation | 104°F (40°C) |
| Package Quantity | 1 |
