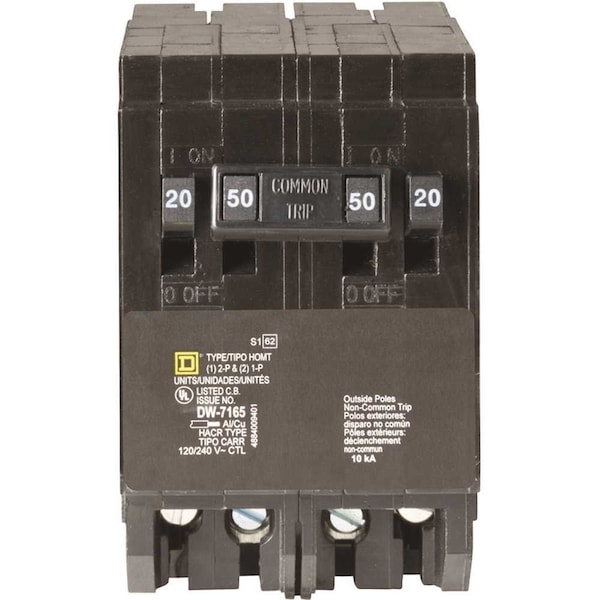

Miniature Circuit Breaker, HOMT Series, 20/50A, 2x1, 1x2 Pole, 120/240V AC, 10kA
| Item | Miniature Circuit Breaker |
|---|---|
| Series | HOMT |
| Amps | 20/50A |
| Number of Poles | 2x1, 1x2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Quad Tandem |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Terminal Connection | Lug |
| Width | 2 in |
| Depth | 2.98 in |
| Height | 3.13 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 14 AWG (Cu), 12 AWG (Al) |
| Standards | UL Listed |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Max. Wire Size | 6 AWG (Cu/Al), 8 AWG (Al) |
| Package Quantity | 1 |
