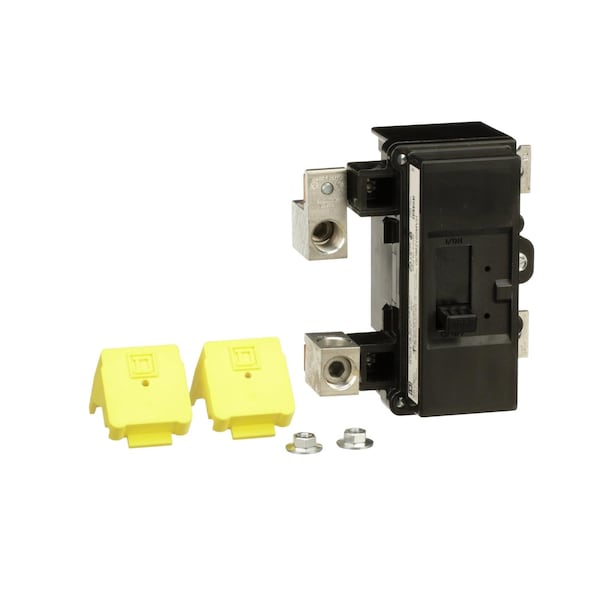

Miniature Circuit Breaker, QO Series, 100A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 100A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Main Breaker |
| Phase | 1 |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | QOM2 |
| Width | 5.08 in |
| Depth | 3.58 in |
| Height | 5.59 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 4 AWG (Cu/Al) |
| Standards | UL Listed, CSA |
| Features | Mercury Free |
| Max. Wire Size | 300 kcmil (Cu/Al) |
| Interrupt Rating | 22 kA at 120/240V AC |
| For Use With | QO Load Center |
| Application | Primary Main Breaker |
| Package Quantity | 1 |
