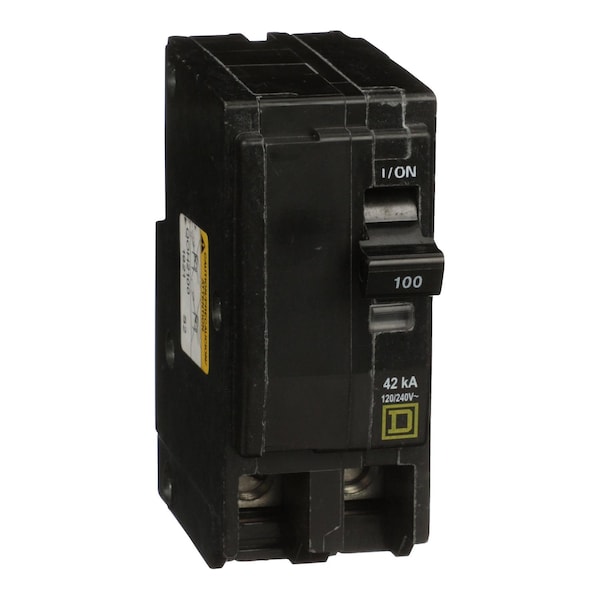

Miniature Circuit Breaker, QO Series, 100A, 2 Pole, 120/240V AC, 42kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 100A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 42kA at 120/240V AC |
| Trip Type | Common |
| Terminal Connection | Lug |
| Width | 57 mm |
| Depth | 74 mm |
| Height | 89 mm |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 2/0 AWG (Cu/Al) |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Min. Wire Size | 4 AWG (Cu/Al) |
| Standards | UL Listed, CSA |
| Interrupt Rating | 42 kA at 120/240V AC |
| Package Quantity | 1 |
