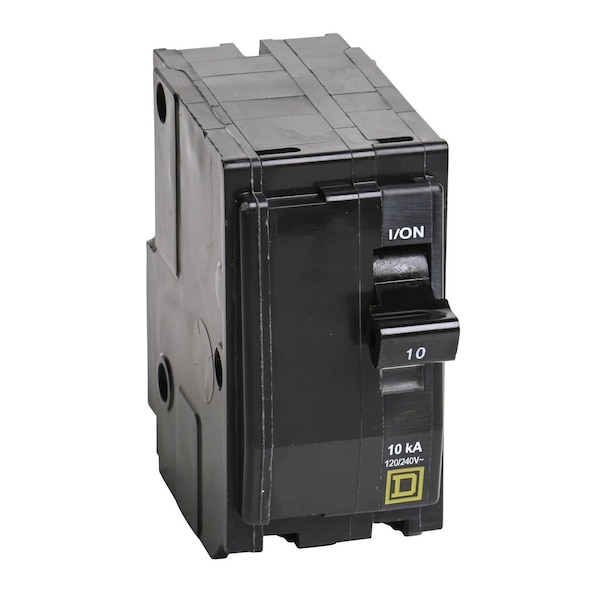

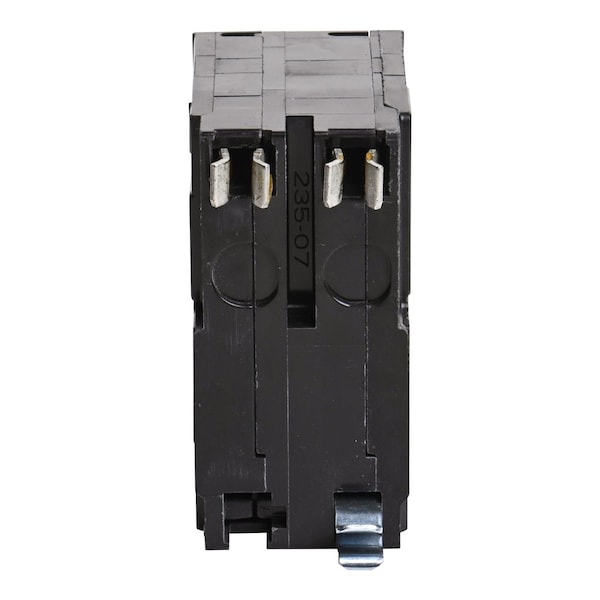

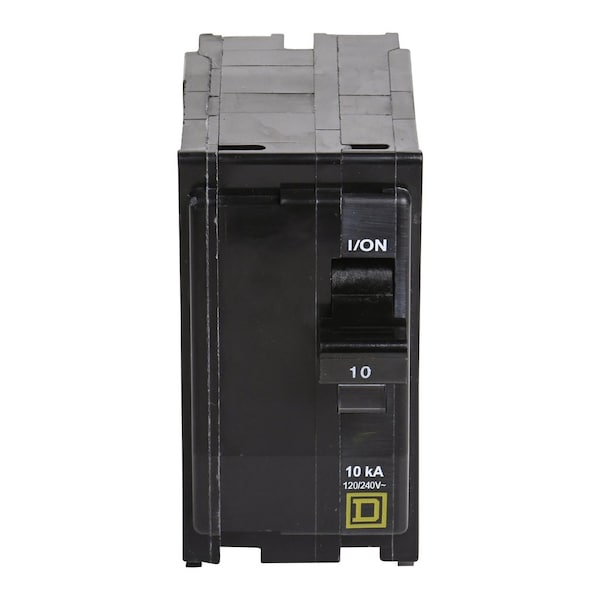

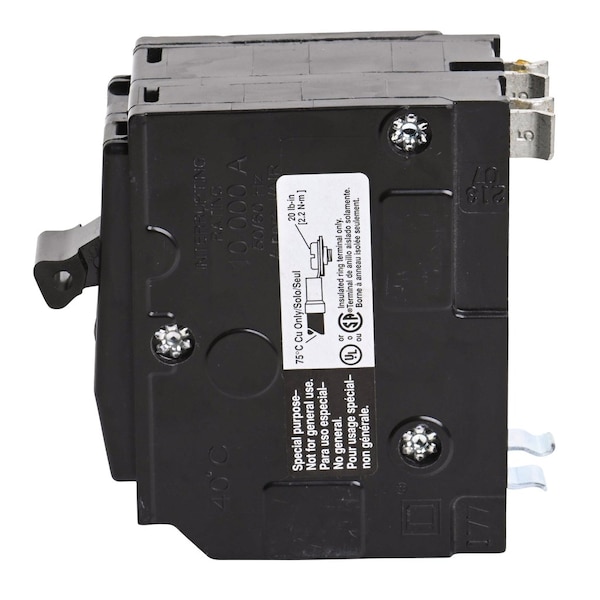

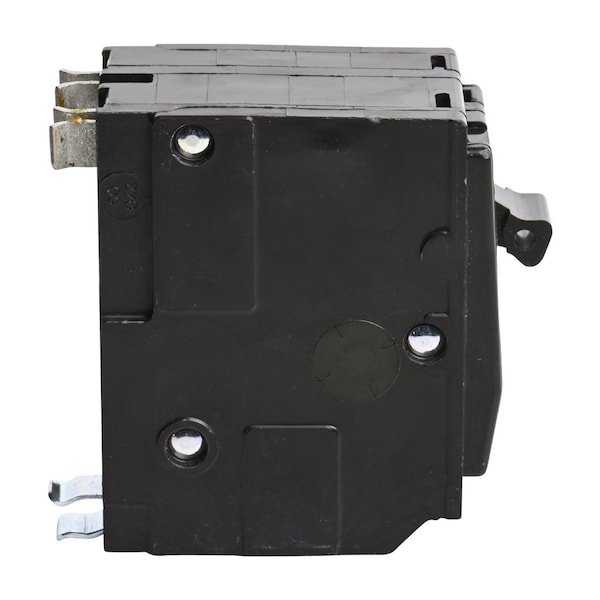

Miniature Circuit Breaker, QO Series, 10A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 10A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Ring Tongue |
| Width | 38 mm |
| Depth | 74 mm |
| Height | 76 mm |
| DC Voltage Rating | Not Rated |
| Features | Mercury Free |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Application | HACR rated Applications |
| Standards | UL Listed, CSA |
| Interrupt Rating | 10 kA at 120/240V AC |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Product Type | Miniature Circuit Breaker 120/240V 10A |
| Tightening Torque | 35.40 lbf.in (4 N.m) |
| Wire Size | AWG 14 to AWG 8 copper or aluminium |
| Current Rating | 10 A |
| Ambient Temperature Rating | 104°F (40°C) |
| Ratings | HACR rated |
| Certifications | UL Listed; CSA |
| Package Quantity | 1 |
