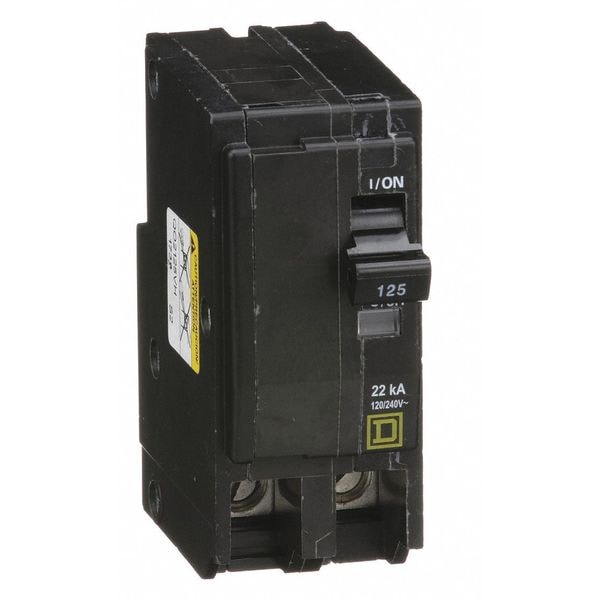

Miniature Circuit Breaker, QO Series, 125A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 125A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 22kA at 120/240V AC |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Width | 1-1/2 in |
| Depth | 2.91 in |
| Height | 3-1/2 in |
| DC Voltage Rating | Not Rated |
| Standards | UL Listed |
| Min. Wire Size | 4 AWG |
| Max. Wire Size | 2 AWG |
| For Use With | QO Load Centers and NQ Panelboards |
| Interrupt Rating | 22 kA at 120/240V AC |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 3-1/2 in |
| Voltage | 120/240 VAC |
| Length | 3-1/2 in |
| Package Quantity | 1 |
