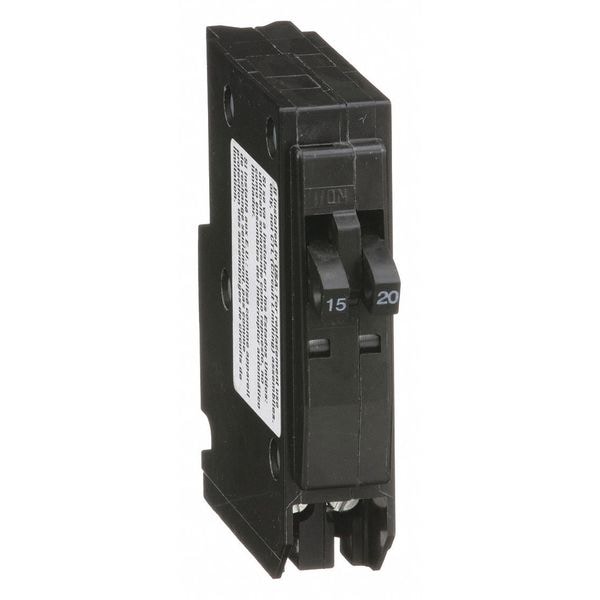

Miniature Circuit Breaker, QO Series, 15/20A, 1x1, 1x1 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 15/20A |
| Number of Poles | 1x1, 1x1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Tandem |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |

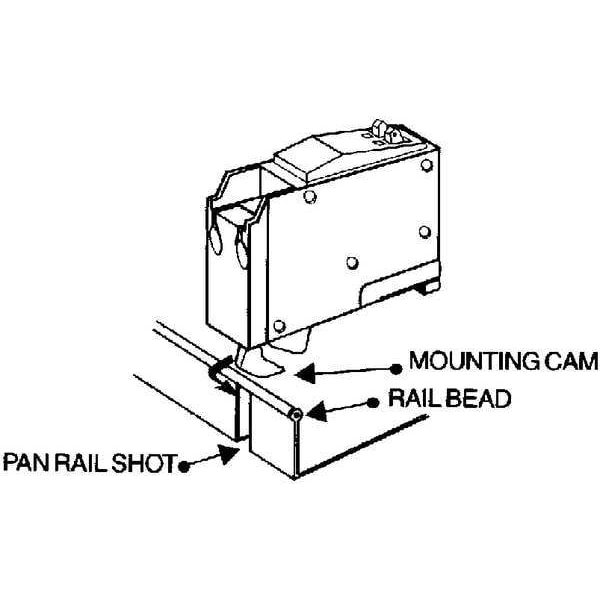

| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | 100A/QO |
| Width | 3/4 in |
| Depth | 2.91 in |
| Height | 3.23 in |
| DC Voltage Rating | 48V DC |
| Standards | UL Listed |
| Max. Wire Size | 8 AWG |
| For Use With | Old Non Class CTL QO Load Center |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120/240V AC |
| Application | HACR rated Applications |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 3.22 in |
| Certifications | UL Listed; CSA |
| Wire Size | AWG 14 to AWG 8 copper or aluminium |
| Ratings | HACR rated |
| Tightening Torque | 24.78 lbf.in (2.8 N.m) |
| Ambient Temperature Rating | 104°F (40°C) |
| Current Rating | 20 A, 15 A |
| Voltage | 120/240 VAC |
| Length | 3.22 in |
| Package Quantity | 1 |
