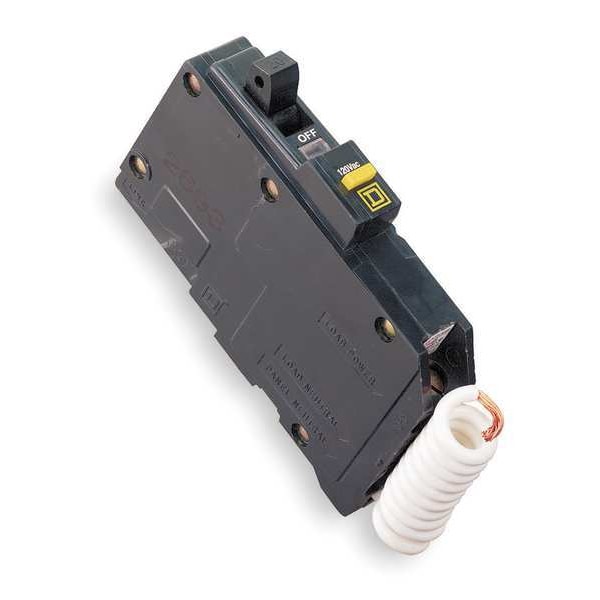

Miniature Circuit Breaker, QO Series, 15A, 1 Pole, 120/240V AC, 10kA at 120V AC, B Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120V AC |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Width | 3/4 in |
| Depth | 2.91 in |
| Height | 105 mm |
| DC Voltage Rating | 48V DC |
| Curve Type | B |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 8 AWG |
| Standards | UL Listed |
| For Use With | QO Load Centers and NQ Panelboards |
| Application | HACR rated Applications |
| Interrupt Rating | 10 kA at 120V AC |
| Features | Mercury Free |
| Compatible Panelboard/Load Center Series | QO, NQ |
| Length (Straight Wireway) | 3 in |
| Certifications | UL Listed; CSA |
| Wire Size | AWG 14 to AWG 8 copper; AWG 12 to AWG 8 aluminium |
| Ambient Temperature Rating | 104°F (40°C) |
| Tightening Torque | 35.40 lbf.in (4 N.m); 40.71 lbf.in (4.6 N.m) 0.01 to 0.03 in² (4 to 20 mm²) (AWG 12 to AWG 4) |
| Ratings | HACR rated |
| Length | 3 in |
| Voltage | 120/240 VAC |
| Package Quantity | 1 |
