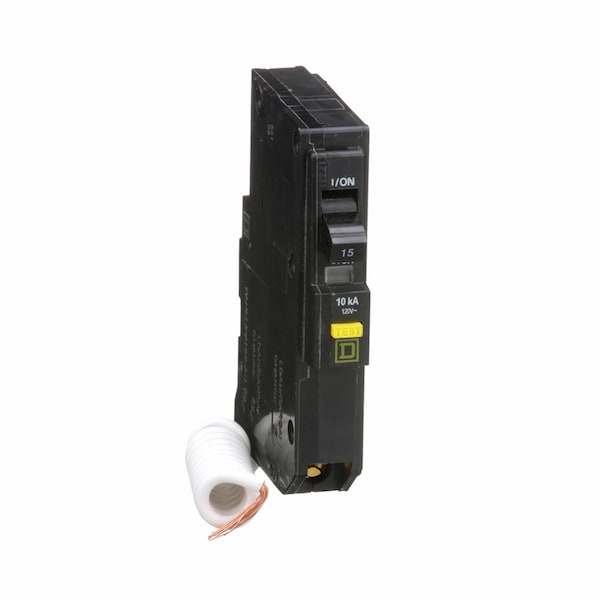

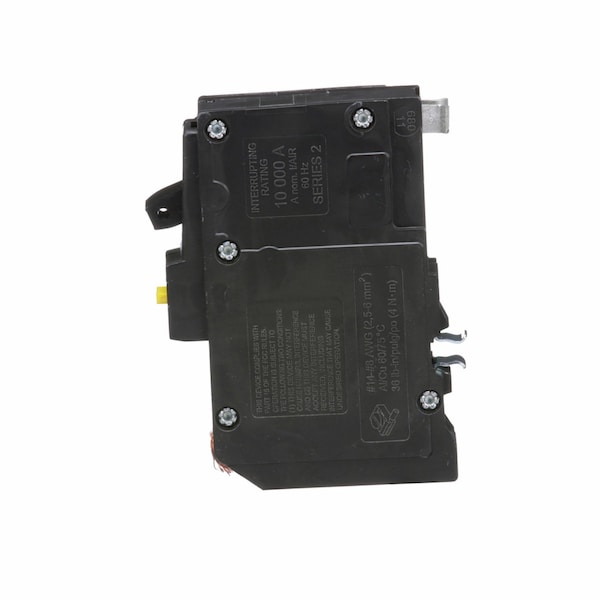

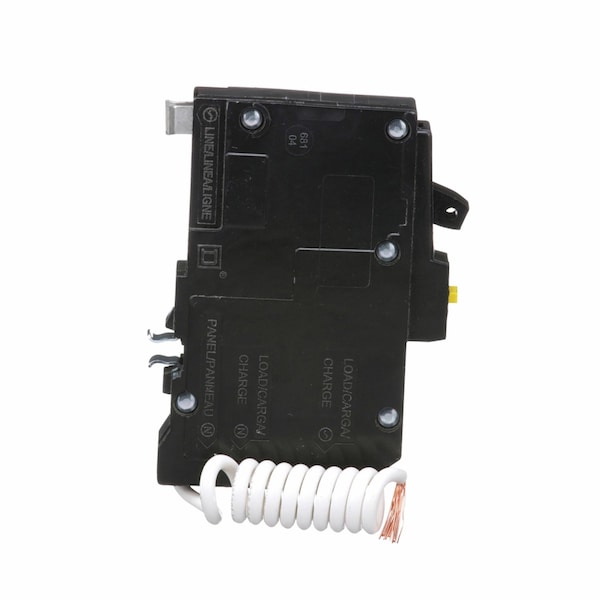

Miniature Circuit Breaker, QO Series, 15A, 1 Pole, 120V AC, 10kA at 120V AC, A Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120V AC |
| Terminal Connection | Pressure Plate |
| Width | 3/4 in |
| Depth | 2.91 in |
| Height | 4.13 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Standards | UL Listed, CSA |
| Max. Wire Size | 8 AWG (Cu), 8 AWG (Al) |
| Min. Wire Size | 14 AWG (Cu), 12 AWG (Al) |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120V AC |
| Package Quantity | 1 |
