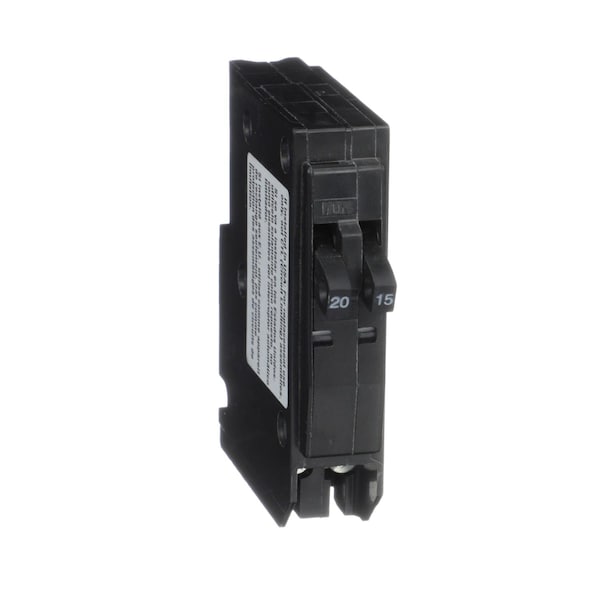

Miniature Circuit Breaker, QO Series, 20/15A, 1x1, 1x1 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 20/15A |
| Number of Poles | 1x1, 1x1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Tandem |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Width | 19 mm |
| Depth | 74 mm |
| Height | 82 mm |
| DC Voltage Rating | Not Rated |
| Application | HACR rated Applications |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Interrupt Rating | 10 kA at 120/240V AC |
| Features | Mercury Free |
| Standards | UL Listed, CSA |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Ratings | HACR rated |
| Certifications | UL Listed; CSA |
| Current Rating | 20 A, 15 A |
| Ambient Temperature Rating | 104°F (40°C) |
| Wire Size | AWG 14 to AWG 8 copper or aluminium |
| Tightening Torque | 24.78 lbf.in (2.8 N.m) |
| Number Of Panel Spaces | 1 |
| Package Quantity | 1 |
