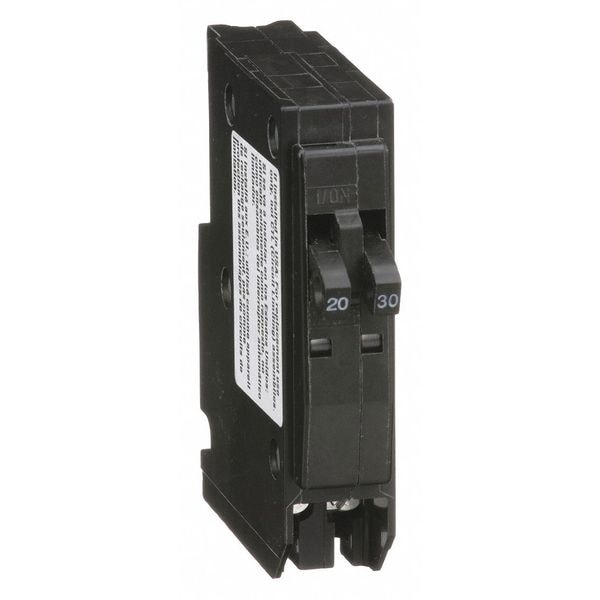

Miniature Circuit Breaker, QO Series, 20/30A, 1x1, 1x1 Pole, 240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 20/30A |
| Number of Poles | 1x1, 1x1 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Tandem |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Width | 19 mm |
| Depth | 74 mm |
| Height | 82 mm |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Interrupt Rating | 10 kA at 120/240V AC |
| Application | HACR rated Applications |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Features | Mercury Free |
| Standards | UL Listed, CSA |
| Product Type | Miniature Circuit Breaker 240V 20/30A |
| Package Quantity | 1 |
