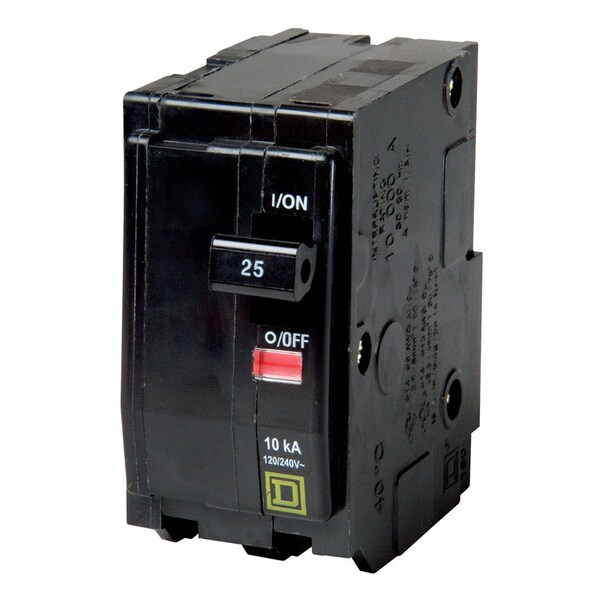

Miniature Circuit Breaker, QO Series, 25A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 25A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Pressure Plate |

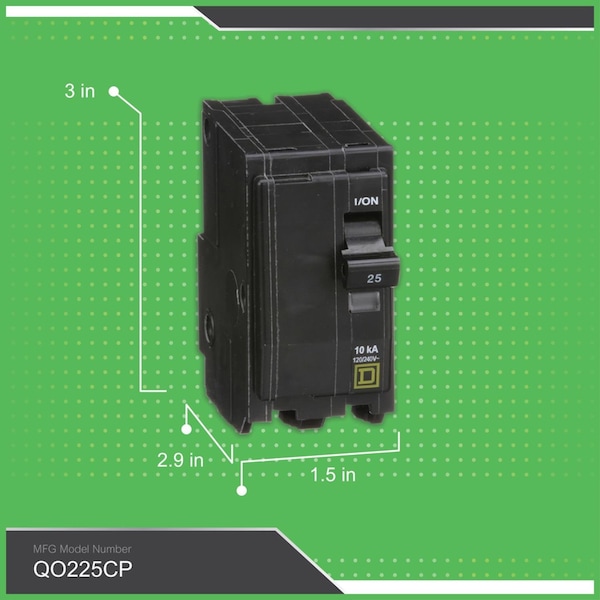

| Width | 1-1/2 in |
| Depth | 2.91 in |
| Height | 2.99 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Standards | UL Listed, CSA |
| Features | Mercury Free |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Interrupt Rating | 10 kA at 120/240V AC |
| Application | HACR rated Applications |
| Package Quantity | 1 |
