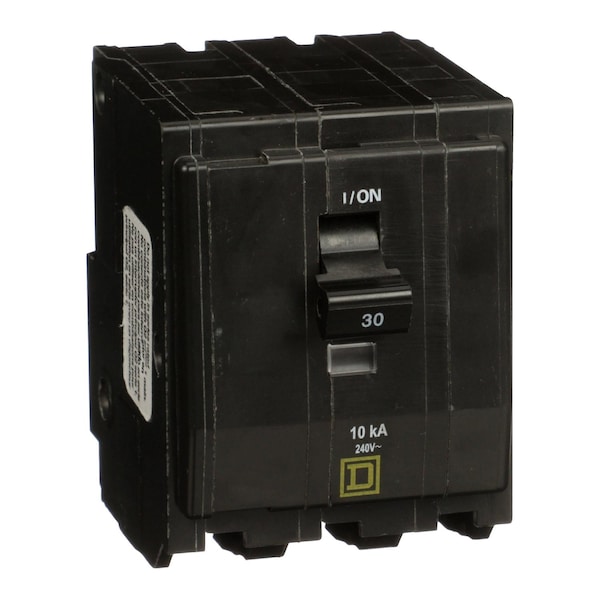

Miniature Circuit Breaker, QO Series, 30A, 3 Pole, 240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 30A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Ring Tongue |
| Width | 57 mm |
| Depth | 74 mm |
| Height | 76 mm |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 8 AWG (Cu) |
| Standards | UL Listed, CSA |
| Features | Mercury Free |
| Min. Wire Size | 14 AWG (Cu) |
| Application | HACR rated Applications |
| Interrupt Rating | 10 kA at 120/240V AC |
| Product Type | Miniature Circuit Breaker 240V 30A |
| Package Quantity | 1 |
