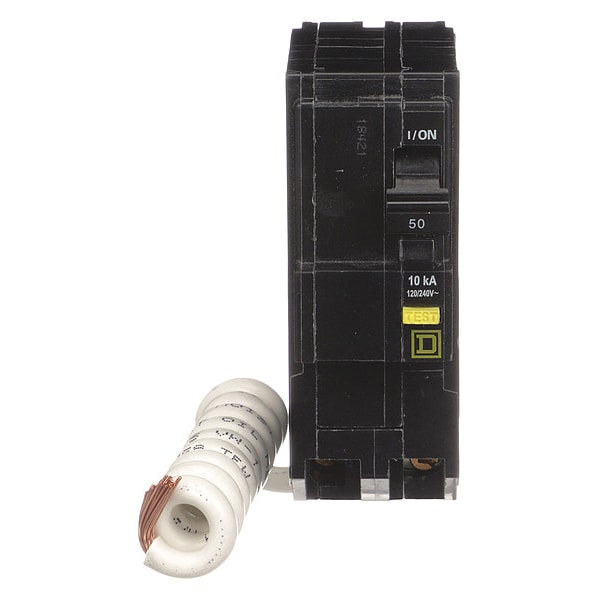

Miniature Circuit Breaker, QO Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC, A Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 50A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Width | 38 mm |
| Depth | 74 mm |
| Height | 105 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Interrupt Rating | 10 kA at 120/240V AC |
| Standards | UL Listed, CSA |
| Max. Wire Size | 4 AWG (Al), 6 AWG (Cu) |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Features | Mercury Free |
| Product Type | Miniature Circuit Breaker 120/240V 50A |
| Package Quantity | 1 |
