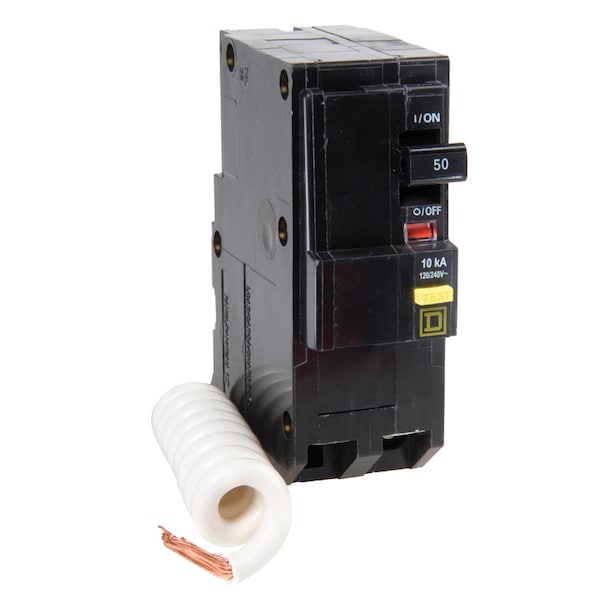

Miniature Circuit Breaker, QO Series, 50A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 50A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Width | 1-1/2 in |
| Depth | 2.91 in |
| Height | 4.13 in |
| DC Voltage Rating | Not Rated |
| Tightening Torque | 4.6-4.6 N.m 2.5-10 mm2² (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm2² (AWG 12...AWG 4) |
| Number Of Spaces Required | 2 |
| Ambient Air Temperature For Operation | 40 2°C |
| Breaking Capacity | 10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz |
| Product Certifications | UL Listed || CSA |
| Awg Gauge | AWG 12...AWG 4 aluminium || AWG 14...AWG 6 copper |
| Poles Description | 2P |
| Net Weight | 0.467 kg |
| Package Quantity | 1 |
