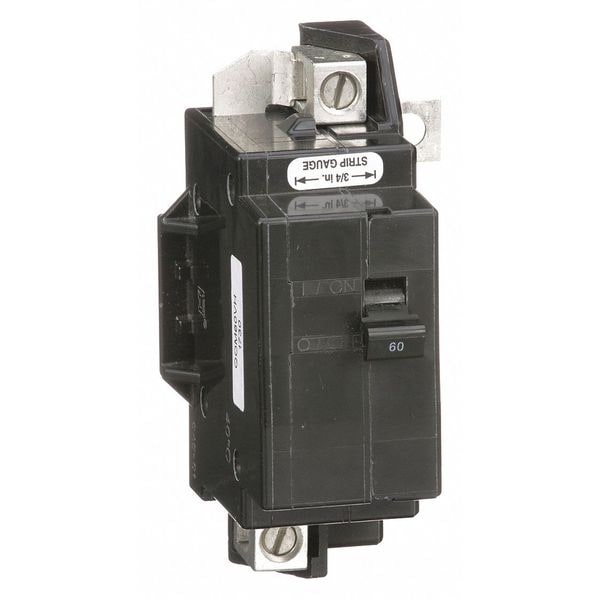

Miniature Circuit Breaker, QO Series, 60A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QO |
| Amps | 60A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Main Breaker |
| Phase | 1 |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | QOM1 |
| Width | 3.46 in |
| Depth | 5 in |
| Height | 5.08 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 4 AWG |
| For Use With | Homeline Load Center, QO Load Center |
| Features | Mercury Free |
| Standards | CSA, UL E84967, UL Listed |
| Max. Wire Size | 2/0 AWG |
| Interrupt Rating | 22 kA at 120/240V AC, 10 kA |
| Product Type | Miniature Circuit Breaker 240V 60A |
| Compatible Panelboard/Load Center Series | QO |
| Tightening Torque | 53.10 lbf.in (6 N.m) 0.01 to 0.10 in² (4 to 65 mm²) (AWG 12 to AWG 2/0) |
| Wire Size | AWG 4 to AWG 2/0 aluminium/copper |
| Certifications | UL Listed; CSA |
| Breaker Compatibility | Load center QO; Load center Homeline |
| Load Center Type | Main breaker |
| Ambient Temperature Rating | 104°F (40°C) |
| Package Quantity | 1 |
