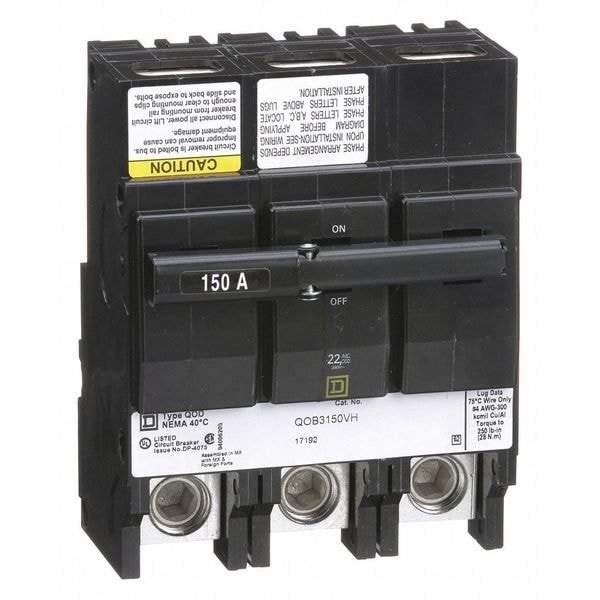

Miniature Circuit Breaker, QOB Series, 150A, 3 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | 100A/QO |
| Width | 4-1/2 in |
| Depth | 4.9 in |
| Height | 5.71 in |
| DC Voltage Rating | Not Rated |
| For Use With | Square D NQOD Panelboards |
| Min. Wire Size | 4 AWG |
| Standards | UL Listed |
| Max. Wire Size | 300 MCM |
| Features | Mercury Free |
| Interrupt Rating | 22 kA at 120/240V AC |
| Compatible Panelboard/Load Center Series | QO |
| Max. Operating Temp. | 104 deg F |
| Min. Operating Temp. | 77 deg F |
| Length (Straight Wireway) | 5.72 in |
| Length | 5.72 in |
| Voltage | 240VAC |
| Mounting | Bolt on |
| Package Quantity | 1 |
