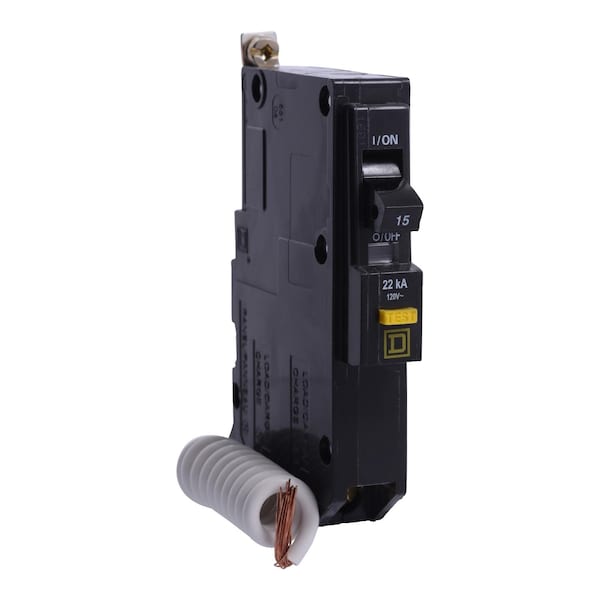

Miniature Circuit Breaker, QOB Series, 15A, 1 Pole, 120V AC, 22kA at 120V AC, A Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120V AC |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Width | 19 mm |
| Depth | 74 mm |
| Height | 105 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Standards | UL Listed, CSA |
| Interrupt Rating | 22 kA at 120V AC |
| Min. Wire Size | 14 AWG (Cu), 12 AWG (Al) |
| Max. Wire Size | 8 AWG (Cu), 8 AWG (Al) |
| Features | Mercury Free |
| Package Quantity | 1 |
