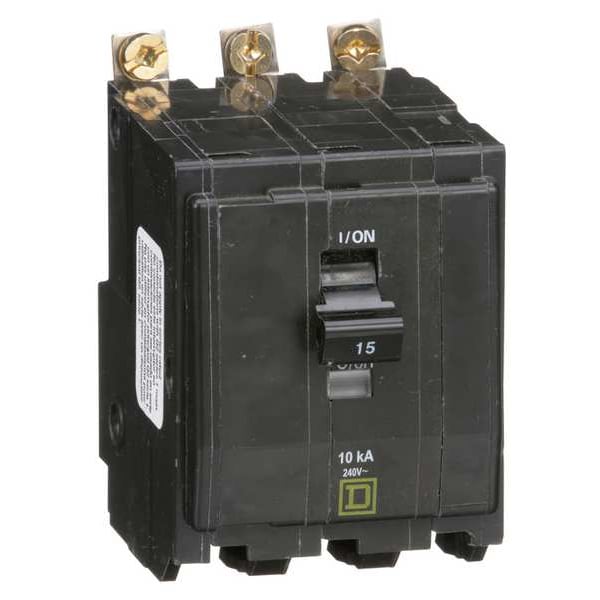

Miniature Circuit Breaker, QOB Series, 15A, 3 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 15A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Width | 2-1/4 in |
| Depth | 2.91 in |
| Height | 2.99 in |
| DC Voltage Rating | 48V DC |
| For Use With | Square D NQOD Panelboards |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| Standards | UL Listed |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Interrupt Rating | 10 kA at 120/240V AC |
| Max. Operating Temp. | 104 deg F |
| Min. Operating Temp. | 77 deg F |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 3 in |
| Ratings | HACR rated |
| Certifications | UL Listed; CSA |
| Wire Size | AWG 14 to AWG 8 copper or aluminium |
| Tightening Torque | 35.40 lbf.in (4 N.m) |
| Ambient Temperature Rating | 104°F (40°C) |
| Mounting | Bolt on |
| Length | 3 in |
| Voltage | 240VAC |
| Package Quantity | 1 |
