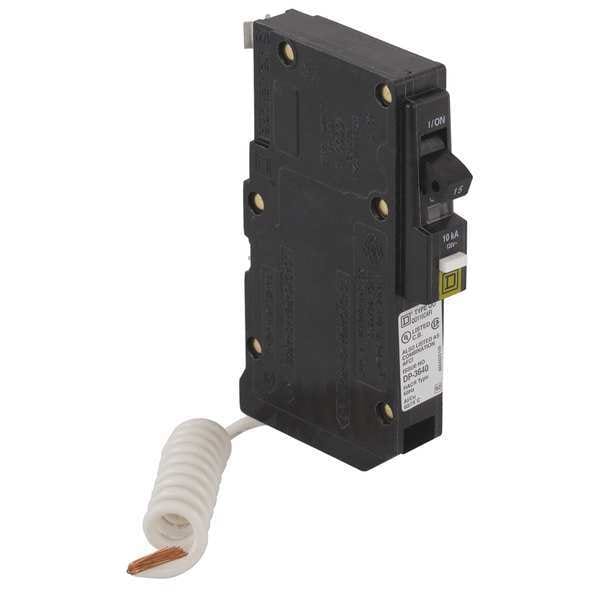

Miniature Circuit Breaker, QOB Series, 20A, 1 Pole, 120V AC, 22kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Combination Arc Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120V AC |
| Terminal Connection | Pressure Plate |
| Frame Size | 100A/QO |
| Width | 3/4 in |
| Depth | 2.91 in |
| Height | 4.76 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| For Use With | QO Load Centers and NQ Panelboards |
| Max. Wire Size | 8 AWG |
| Standards | UL Listed |
| Features | Mercury Free |
| Interrupt Rating | 22 kA at 120/240V AC |
| Application | HACR rated Applications |
| Min. Operating Temp. | 77 deg F |
| Max. Operating Temp. | 104 deg F |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 4-3/4 in |
| Voltage | 120VAC |
| Mounting | Bolt on |
| Length | 4-3/4 in |
| Package Quantity | 1 |
