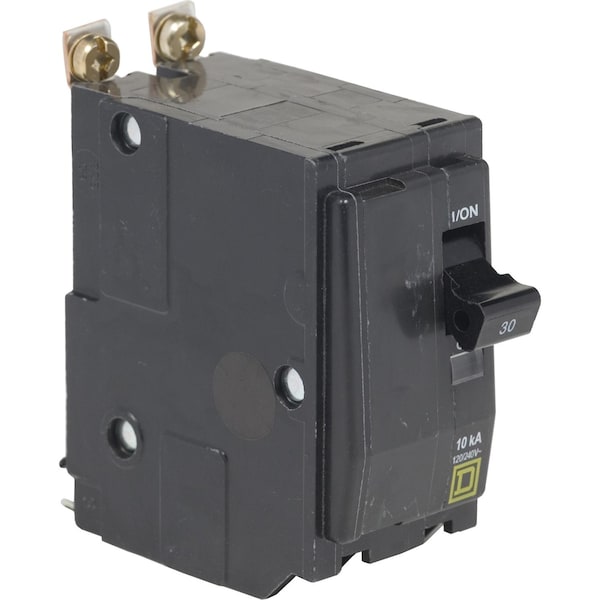

Miniature Circuit Breaker, QOB Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Ring Tongue |
| Frame Size | 100A/QO |
| Width | 38 mm |
| Depth | 74 mm |
| Height | 76 mm |
| DC Voltage Rating | Not Rated |
| Application | HACR rated Applications |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Max. Wire Size | 8 AWG (Cu/Al) |
| Features | Mercury Free |
| Interrupt Rating | 10 kA at 120/240V AC |
| Standards | UL Listed, CSA |
| Package Quantity | 1 |
