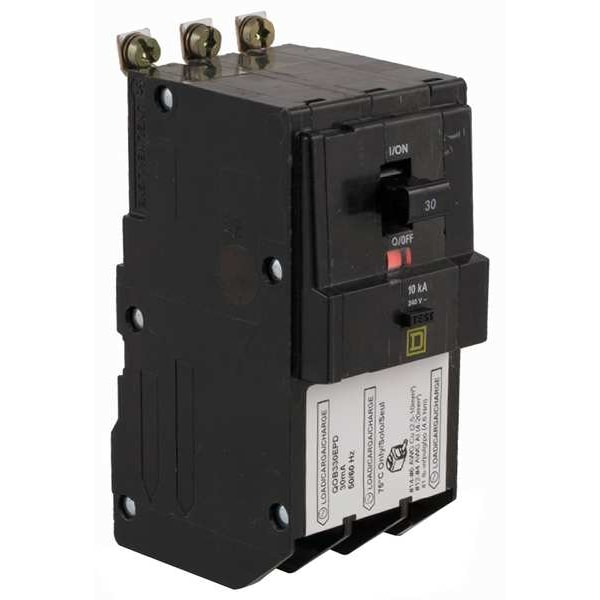

Miniature Circuit Breaker, QOB Series, 30A, 3 Pole, 240V AC, 10kA at 240V AC, B Curve
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 30A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Ground Fault Circuit Interrupter |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 240V AC |
| Terminal Connection | Lug |
| Frame Size | 100A/QO |
| Width | 2.24 in |
| Depth | 2.91 in |
| Height | 4.13 in |
| DC Voltage Rating | Not Rated |
| Curve Type | B |
| Standards | UL Listed |
| Max. Wire Size | 4 AWG (Al), 6 AWG (Cu) |
| For Use With | QO Load Centers and NQ Panelboards |
| Min. Wire Size | 12 AWG (Al), 14 AWG (Cu) |
| Interrupt Rating | 10 kA at 240V AC |
| Features | Mercury Free |
| Min. Operating Temp. | 77 deg F |
| Compatible Panelboard/Load Center Series | QO, NQ |
| Max. Operating Temp. | 104 deg F |
| Length (Straight Wireway) | 4.12 in |
| Mounting | Bolt on |
| Voltage | 120/240 VAC |
| Length | 4.12 in |
| Package Quantity | 1 |
