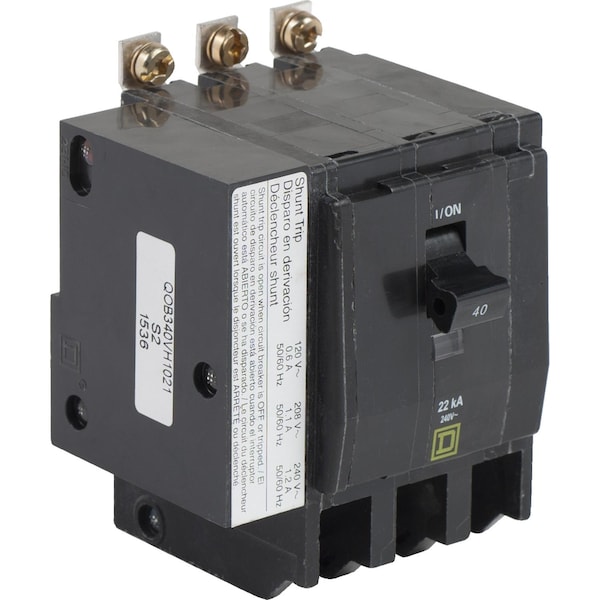

Miniature Circuit Breaker, QOB Series, 40A, 3 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 40A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 22kA at 120/240V AC |
| Trip Type | Shunt Trip |
| Terminal Connection | Lug |
| Frame Size | 100A/QO |
| Width | 76 mm |
| Depth | 74 mm |
| Height | 79 mm |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 2 AWG (Cu/Al) |
| Application | HACR rated Applications |
| Min. Wire Size | 8 AWG (Cu/Al) |
| Standards | UL Listed, CSA |
| Features | Mercury Free |
| Interrupt Rating | 22 kA at 120/240V AC |
| Tightening Torque | 49.56 lbf.in (5.6 N.m) |
| Wire Size | AWG 8 to AWG 2 copper or aluminium |
| Number Of Panel Spaces | 4 |
| Certifications | UL Listed; CSA |
| Current Rating | 40 A |
| Ratings | HACR rated |
| Ambient Temperature Rating | 104°F (40°C) |
| Package Quantity | 1 |
