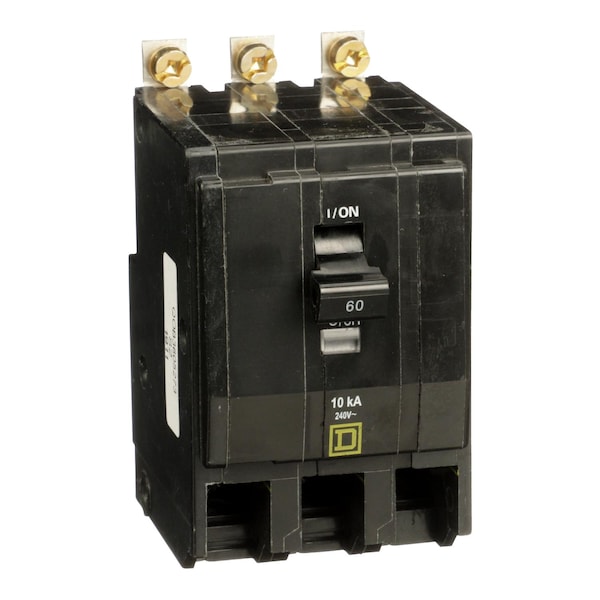

Miniature Circuit Breaker, QOB Series, 60A, 3 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOB |
| Amps | 60A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Ring Tongue |
| Frame Size | 100A/QO |
| Width | 2.24 in |
| Depth | 2.91 in |
| Height | 3.11 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 kA at 120/240V AC |
| Min. Wire Size | 8 AWG (Cu) |
| Standards | UL Listed, CSA |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Max. Wire Size | 2 AWG (Cu) |
| Package Quantity | 1 |
