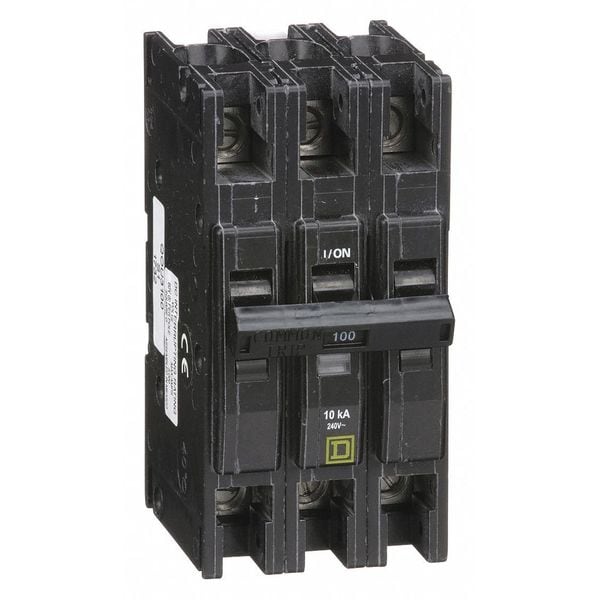

Miniature Circuit Breaker, QOU Series, 100A, 3 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOU |
| Amps | 100A |
| Number of Poles | 3 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Slotted Box Lug |
| Frame Size | 100A/QOU |
| Width | 2-1/4 in |
| Depth | 2.95 in |
| Height | 4.45 in |
| DC Voltage Rating | 60V DC |
| Standards | IEC, UL listed |
| Max. Wire Size | 2/0 AWG |
| Min. Wire Size | 12 AWG |
| For Use With | Air Conditioning and Refrigeration Equipment, Heating |
| Application | HACR rated Applications |
| Features | Mercury Free |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 4.45 in |
| Length | 4.45 in |
| Voltage | 240VAC |
| Mounting | Unit Mount |
| Package Quantity | 1 |
