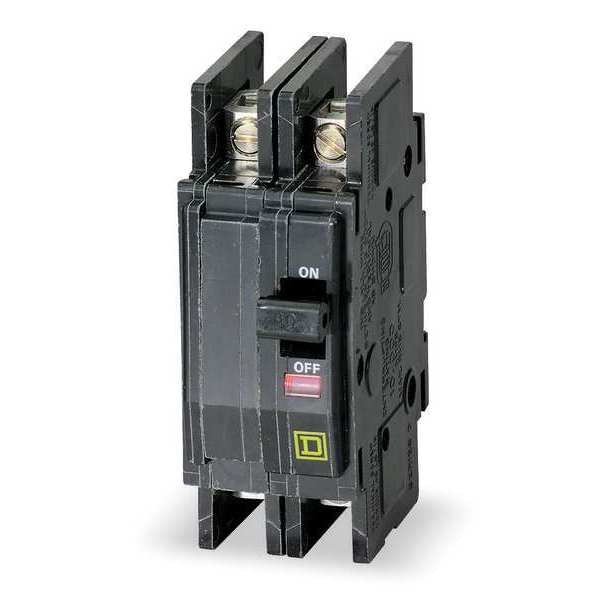

Miniature Circuit Breaker, QOU Series, 50A, 2 Pole, 120/240V AC, 22kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOU |
| Amps | 50A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 22kA at 120/240V AC |
| Terminal Connection | Slotted Box Lug |
| Frame Size | 100A/QOU |
| Width | 1-1/2 in |
| Depth | 2.95 in |
| Height | 4.05 in |
| DC Voltage Rating | 48V DC |
| Standards | IEC, UL listed |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 2 AWG |
| For Use With | Air Conditioning and Refrigeration Equipment, Heating |
| Features | Mercury Free |
| Application | HACR rated Applications |
| Compatible Panelboard/Load Center Series | QO |
| Length (Straight Wireway) | 4.05 in |
| Product Certifications | CSA, IEC, UL Listed |
| Tightening Torque | 45 lbf.in (5.08 N.m) (AWG 14 to AWG 2) |
| Circuit Breaker Application | HACR rated |
| AWG Gauge | AWG 14 to AWG 2 aluminium/copper |
| Rated Operational Voltage | 120/240 V AC |
| Mounting | Unit Mount |
| Length | 4.05 in |
| Voltage | 120/240 VAC |
| Package Quantity | 1 |
