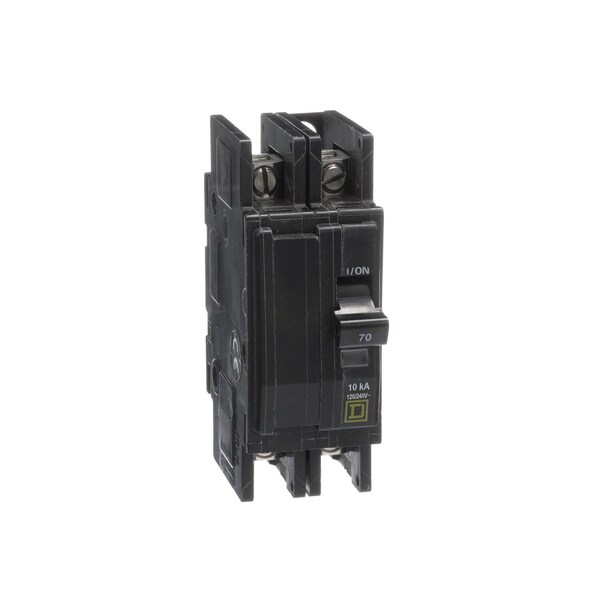

Miniature Circuit Breaker, QOU Series, 70A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | QOU |
| Amps | 70A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Slotted Box Lug |
| Frame Size | 100A/QOU |
| Width | 1-1/2 in |
| Depth | 2.95 in |
| Height | 4.45 in |
| DC Voltage Rating | 48V DC |
| Min. Wire Size | 12 AWG (Cu/Al) |
| Max. Wire Size | 2/0 AWG (Cu/Al) |
| Standards | CSA, UL Listed, IEC |
| Application | HACR rated Applications |
| Features | Mercury Free |
| Package Quantity | 1 |
