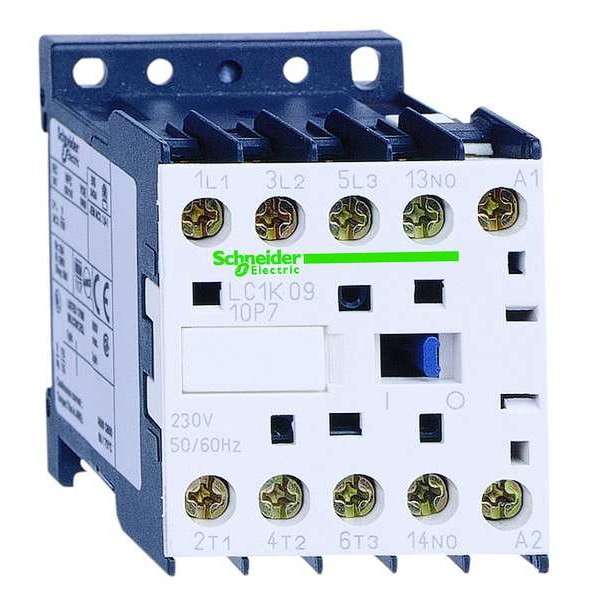

Contactador magnético IEC en miniatura, 3 polos, 208 V CA, 9 A, Reversión: No.
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | Miniature IEC Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 20 A |
| Number of Poles | 3 |
| Coil Volts | 208 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1/2 hp |
| HP @ 1 Phase - 230V | 1.5 |
| HP @ 1 Phase - 240V | 1 1/2 hp |
| Height | 1.73 in |
| HP @ 3 Phase - 208V | 2 hp |
| Width | 1.73 in |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 5 hp |
| Depth | 1.97 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 5 hp |
| Aux. Contact Configuration | 1NO |
| Hz | 50/60 |
| Standards | CSA, UKCA, UL Listed |
| Auxiliary Contact Form | 1NO |
| NEMA Size | Not Applicable |
| Series | TeSys K |
| Impedance | 3 mOhm |
| Signalling Circuit Frequency | Less Than 400 Hz |
| Switching Voltage | 17 V (Signalling Circuit) |
| Environmental Attributes | Mercury Free, Toxic Heavy Metal Free |
| Fuse Amps | 25 A (Power Circuit), 10 A (Signalling Circuit) |
| Working Height | 6,561.68 ft |
| Fire Rating | UL 94 V1, NF F 16-101, NF F 16-102 |
| Shock Resistance | 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Operating Speed | 3600 cycles per hr |
| Control Circuit Voltage Limits | Operational: 0.85 to 1.1 Uc (at 50°C), Drop-Out: 0.2 to 0.75 Uc (at 50°C) |
| Overvoltage Category | CAT III |
| Inrush VA | 30 VA |
| Thermal Amperage | 20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit) |
| Switching Current | 5 mA (Signalling Circuit) |
| Electrical Durability | 1.3 Mcycles 9 A AC-3 Less than or Equal to 440 V; 1.3 Mcycles 9 A AC-3e Less than or Equal to 440 V; 0.16 Mcycles 20 A AC-1 Less than or Equal to 690 V; 0.02 Mcycles 54 A AC-4 Less than or Equal to 440 V |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Mechanical Durability | 10 Mcycles |
| Rated Breaking Capacity | 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V |
| Max. Operating Watts | 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW 380 to (at 415V AC 50/60 Hz AC-3), 4 kW (at 440V AC 50/60 Hz AC-3), 4 kW (at 480V AC 50/60 Hz AC-3), 4 kW (at 500 to 600V AC 50/60 Hz AC-3), 4 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 415V AC 50/60 Hz AC-3e), 4 kW (at 440V AC 50/60 Hz AC-3e), 4 kW (at 480V AC 50/60 Hz AC-3e), 4 kW (at 500 to 600V AC 50/60 Hz AC-3e), 4 kW (at 660 to 690V AC 50/60 Hz AC-3e) |
| Watts Loss | 1.3W |
| Operating Time | 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing) |
| Rated Making Capacity | 110 A |
| Hold VA | 4.5 VA |
| Application | Motor Control, Resistive Load |
| Reversing Capability | Non-Reversing |
| Number of Auxillary Contacts | 1 |
| NEMA Enclosure Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Phase | Three |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Resistance Properties | Insulation Resistant |
| Overall Depth | 1.97 in |
| Full Load Current - Resistive | 20 A |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Number of Normally Open Main Contacts | 3 |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Single Phase - 240V AC | 1.5 HP |
| Overall Width | 1.73 in |
| Overall Height | 1.73 in |
| Mounting Style | DIN Rail |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Voltage Rating | 480 V AC |
| Coil Voltage | 200-208V AC |
| Horsepower @ Single Phase - 120V AC | 0.5 HP |
| Embedded Surge Suppressor | No |
| Full Load Current - Inductive | 9 A |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Contactor Style | IEC |
| Connections - Terminals | screw clamp terminals 1 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 1 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 2.5 mm²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 4 mm²)solid; screw clamp terminals 2 0.00 to 0.01 in² (0.75 to 4 mm²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²)flexible with cable end |
| Rated Operational Current | 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 9 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 20 A (at Less than 140°F (60°C)) at Less than or Equal to 690 V AC AC-1 for power circuit |
| Protective Treatment | TC IEC 60068 TC DIN 50016 |
| Rated Impulse Withstand Voltage | 8 kV |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Flame Retardance | V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Poles Description | 3P |
| Power Pole Contact Composition | 3 NO |
| Product Or Component Type | Contactor |
| Auxiliary Contacts Type | Instantaneous 1 NO |
| Mechanical Robustness | Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27; Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6; Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6 |
| Conventional Free Air Thermal Current | 20 A (at 140°F (60°C)) for power circuit; 10 A (at 122°F (50°C)) for signalling circuit |
| Device Application | Control |
| Control Circuit Type | AC 50/60 Hz |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| Utilisation Category | AC-3; AC-3e; AC-1; AC-4 |
| Rated Short Time Withstand Current | 90 A 122°F (50°C) - 1 s for power circuit; 85 A 122°F (50°C) - 5 s for power circuit; 80 A 122°F (50°C) - 10 s for power circuit; 60 A 122°F (50°C) - 30 s for power circuit; 45 A 122°F (50°C) - 1 min for power circuit; 40 A 122°F (50°C) - 3 min for power circuit; 20 A 122°F (50°C) - Greater than or Equal to 15 min for power circuit; 80 A - 1 s for signalling circuit; 90 A - 500 ms for signalling circuit; 110 A - 100 ms for signalling circuit |
| Non Overlap Distance | 0.02 in |
| Average Impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Inrush Power in VA | 30 VA (at 68°F (20°C)) |
| Operating Altitude | 6561.68 ft (2000 m) without derating |
| Contactor Application | Motor control Resistive load |
| Rated Operational Voltage | Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz |
| Product Certifications | CB Scheme; CCC; UL; CSA; EAC; CE; UKCA |
| Hold-In Power Consumption in VA | 4.5 VA (at 68°F (20°C)) |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Motor Power KW | 2.2 kW 220 to 230 V AC 50/60 Hz AC-3; 4 kW 380 to 415 V AC 50/60 Hz AC-3; 4 kW 440/690 V AC 50/60 Hz AC-3; 2.2 kW 220 to 230 V AC 50/60 Hz AC-3e; 4 kW 380 to 415 V AC 50/60 Hz AC-3e; 4 kW 440/690 V AC 50/60 Hz AC-3e; 2.2 kW 220 to 230 V AC 50/60 Hz AC-4; 4 kW 380 to 415 V AC 50/60 Hz AC-4; 4 kW 440/690 V AC 50/60 Hz AC-4 |
| Control Circuit Voltage | 200 to 208 V AC 50/60 Hz |
| Associated Fuse Rating | 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit; 10 A gG for signalling circuit conforming to IEC 60947; 10 A gG for signalling circuit conforming to VDE 0660 |
| IRMS Rated Making Capacity | 110 A AC for power circuit conforming to IEC 60947; 110 A AC for signalling circuit conforming to IEC 60947 |
| Auxiliary Contact Composition | 1 NO |
| Heat Dissipation | 1.3 W |
| Maximum Operating Rate | 3600 cyc/h |
| Package Quantity | 1 |
