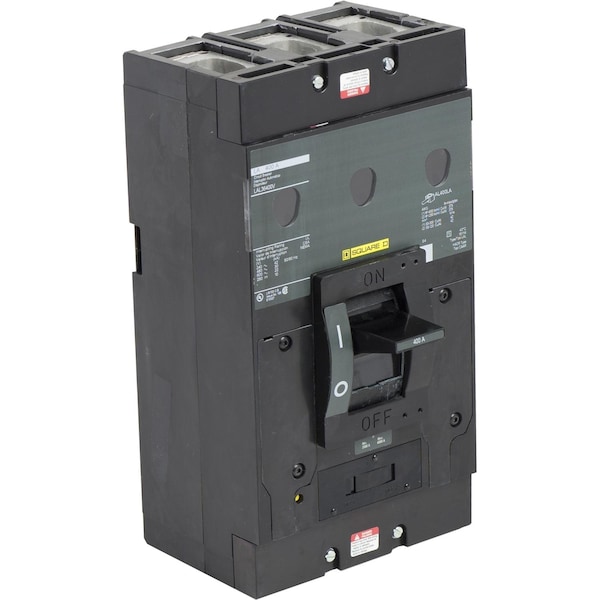

Molded Case Circuit Breaker, LAL Series, 400A, 3 Pole, 600V AC, 42kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | LAL |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 42kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Phase Connection | ABC |
| Frame Size | 400A, LA |
| Width | 6 in |
| Depth | 5.84 in |
| Height | 11 in |
| DC Voltage Rating | 250V DC |
| Features | Mercury Free; PVC Free |
| Standards | CSA, UL Listed, IEC |
| Application | HACR rated Applications |
| High Amp Trip Setting | 4,000 A |
| Terminal Identifier | AL400LA |
| Tightening Torque | 115.06 lbf.in (13 N.m) 0.07 to 0.47 in² (42 to 304 mm²) (AWG 1 to 600 kcmil); 115.06 lbf.in (13 N.m) 0.07 to 0.20 in² (42 to 127 mm²) (AWG 1 to 250 kcmil) |
| Circuit Breaker Application | HACR rated |
| Magnetic Hold Current | 2,000 A |
| Certifications | CSA, IEC |
| Package Quantity | 1 |
