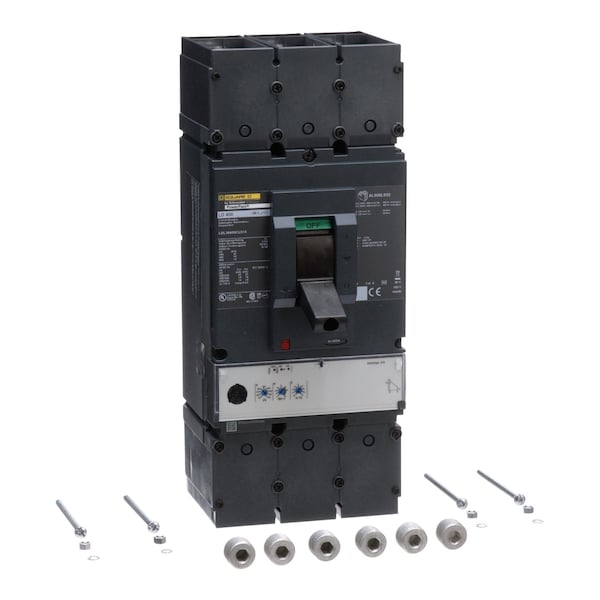

Molded Case Circuit Breaker, LDL Series, 400A, 3 Pole, 600V AC, 25kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | LDL |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Micrologic Standard W LI Functionality |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 25kA at 240V AC |
| Trip Type | Electronic |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 400A, LD |
| Width | 5.51 in |
| Depth | 4.33 in |
| Height | 13.39 in |
| DC Voltage Rating | 250V DC |
| Min. Wire Size | (2) 2/0 AWG (Cu/Al) |
| Features | Mercury Free; PVC Free |
| Color | Black |
| Max. Wire Size | 500 kcmil (Cu/Al) |
| Standards | UL, CSA, NEMA, NOM, IEC |
| Interrupt Rating | 25 kA at 220/240V AC, 18 kA at 380/440/415/480V AC, 14 kA at 500/525/600V AC, 20 kA at 250/500V DC |
| Application | HACR rated Applications; Distribution |
| Package Quantity | 1 |
