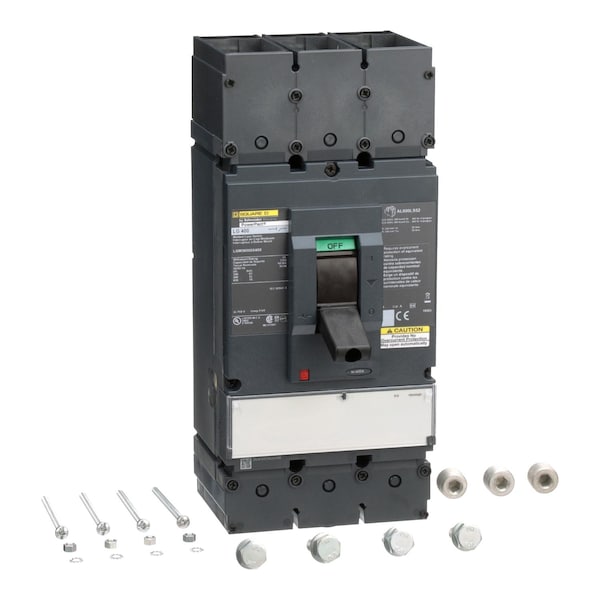

Molded Case Circuit Breaker, LGL Series, 400A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | LGL |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Magnetic |
| Terminal Connection | Lug, Nut |
| Frame Size | 400A, LG |
| Width | 5.51 in |
| Depth | 6.61 in |
| Height | 13.38 in |
| DC Voltage Rating | 250/500V DC |
| Max. Wire Size | 500 kcmil (Cu/Al) |
| High Amp Trip Setting | 4,800 A |
| Features | Mercury Free; PVC Free |
| Min. Wire Size | 2/0 AWG (Cu/Al) |
| Standards | NMX, CSA, UL Listed, CCC, IEC, CE |
| Package Quantity | 1 |
