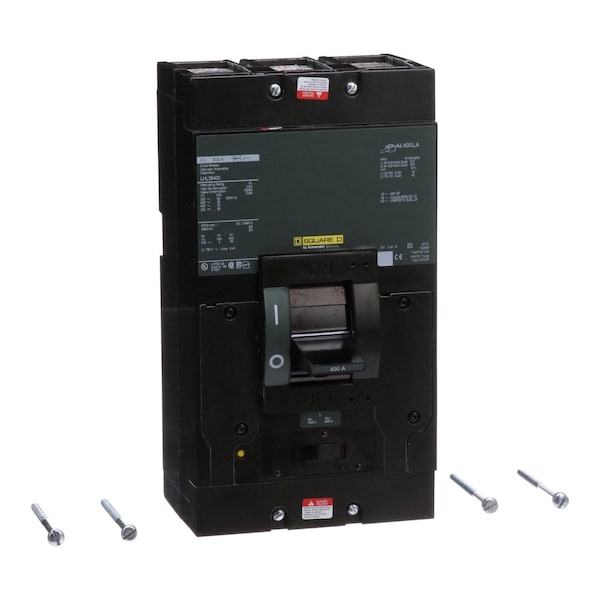

Molded Case Circuit Breaker, LHL Series, 400A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | LHL |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | High Interrupting Capacity |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Phase Connection | ABC |
| Frame Size | 400A, LH |
| Width | 6 in |
| Depth | 5.84 in |
| Height | 11 in |
| DC Voltage Rating | 250V DC |
| Application | HACR rated Applications |
| Features | Mercury Free; PVC Free |
| Standards | CSA, IEC, UL Listed |
| High Amp Trip Setting | 4,000 A |
| Package Quantity | 1 |
