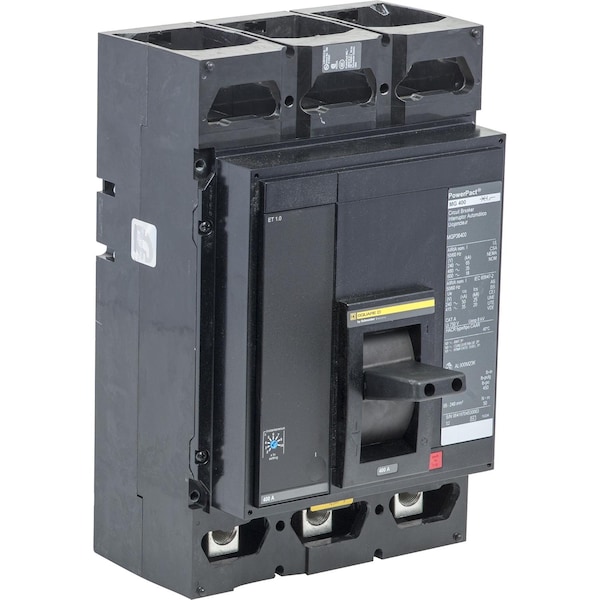

Molded Case Circuit Breaker, MGP Series, 400A, 3 Pole, 600V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | MGP |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Operating Handle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Electronic |
| Terminal Connection | Lug, Nut |
| Frame Size | 800A, M |
| Width | 8.27 in |
| Depth | 8.05 in |
| Height | 12.86 in |
| DC Voltage Rating | Not Rated |
| Features | Mercury Free; PVC Free |
| Min. Wire Size | (3) 3/0 AWG (Cu/Al) |
| Color | Black |
| Interrupt Rating | 25 kA at 240V AC, 20 kA at 380/415V AC, 65 kA at 240V AC, 35 kA at 380/415/480V AC, 18 kA at 600V AC, 50 kA at 240V AC |
| Application | HACR rated Applications; Distribution |
| Standards | UL, CSA, NEMA, NOM, CE |
| Max. Wire Size | (3) 500 kcmil (Cu/Al) |
| High Amp Trip Setting | 800 to 4000 A |
| Package Quantity | 1 |
