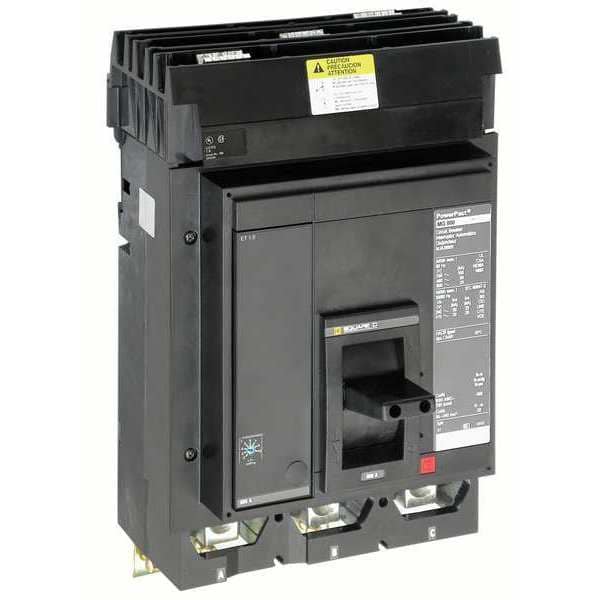

Molded Case Circuit Breaker, MJA Series, 400A, 3 Pole, 600V AC, 100kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | MJA |
| Amps | 400A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Operating Handle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 100kA at 240V AC |
| Trip Type | Electronic |
| Instantaneous Trip | Adjustable |
| Terminal Connection | Lug, I-Line |
| Phase Connection | ABC |
| Frame Size | 800A, M |
| Width | 8.27 in |
| Depth | 8.05 in |
| Height | 12.86 in |
| DC Voltage Rating | Not Rated |
| High Amp Trip Setting | 4,000 A |
| Low Amp Trip Setting | 800 A |
| Standards | CSA, IEC, UL listed |
| Min. Wire Size | 3/0 AWG |
| Max. Wire Size | 500 MCM |
| For Use With | I Line Panelboards |
| Features | Mercury Free; PVC Free |
| Color | Black |
| Application | HACR rated Applications; Distribution |
| Interrupt Rating | 35 kA at 240V AC, 25 kA at 380/415/600V AC, 100 kA at 240V AC, 65 kA at 240/480V AC, 50 kA at 380/415V AC |
| Mounting | Panel Mount |
| Package Quantity | 1 |
